Belted Sledgehammer Tires

Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

MODEL SPECS

• Model Name: Sledge Belted
• Model Type: Monster Truck
• Model Speed: 70+ mph with 6s LiPo battery and optional gearing
• Model Skill Level: 4
• Scale: 1/8
• Weight: 12.74 lbs (5.77 kg)
• Length: 23.78 inches (604 mm including wing)
• Width: 18.10 inches (459 mm)
• Front Track: 18.10 inches (459 mm)
• Rear Track: 18.10 inches (459 mm)
• Height: 8.43 inches (214 mm)
• Wheelbase: 15.10 inches (384 mm)
• Center Ground Clearance: 1.95 inches (50 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 metric pitch
• Servo(s): 2275 digital metal-gear waterproof (347 oz-in)
• Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
• Battery Compartment Specs: 181 mm X 54 mm X 45 mm

MOTOR SPECS

• Motor Name: 4-pole 2000 kV
• Motor Type: 2000 kV sensorless brushless
• Motor Weight: 14.32 oz (406 g)
• Motor Length: 2.97 inches (76 mm)
• Motor Diameter: 1.65 inches (42 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: Traxxas 6.5 mm bullet connectors

ESC SPECS

• ESC Name: VXL-6s
• ESC Type: Brushless
• ESC Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
• ESC Weight: 7.30 oz (207 g)
• Motor Connectors: 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors

Features:

• VXL-6s™ Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Integrated protection circuits
• Velineon® 2000 kV Brushless Motor
• 4-pole 2000 kV
• 5 mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
• Supports entire motor length
• Reduces flex for longer gear life
• Up to 70+ mph with Two 3s LiPo Batteries (sold separately)
• Traxxas Stability Management®
• Helps prevents spinouts and loss of control
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
• TQi 2-channel transmitter
• Traxxas Link enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Programmable Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)

Drivetrain

• Full-time 4-wheel drive
• Heavy-duty steel driveshafts
• Large 8 mm steel stub axles
• Steel dogbone center driveline
• Protective rubber boots on differential inputs

Transmission

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive
• Differentials
• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Large 8 mm output shafts
• Steel drive cups
• Easy access bulkheads
• GT-Maxx®Shocks
• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower seal cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on

Suspension

• Thick 5 mm 6061-T6 aluminum shock towers
• Ultra-tough composite arms
• Made from our strongest cold-weather material
• Molded insert for clean look
• Rear rock deflectors
• Press-in hinge pins to reduce play
• Oversize molded toe and camber links
• Heavy-duty C-hubs with oversize bearings
• Multiple mounting points for suspension tuning

Chassis

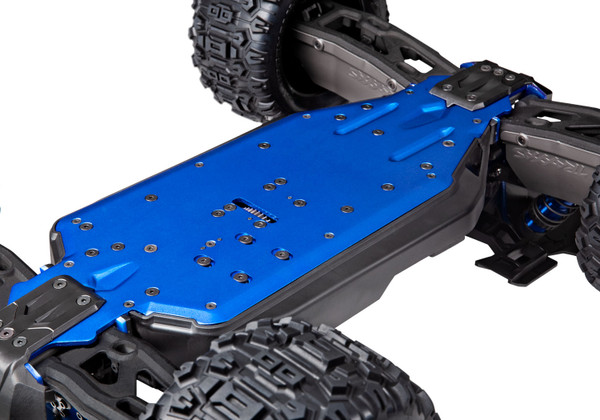

• 3.2 mm ribbed aluminum chassis
• Formed edges for improved strength

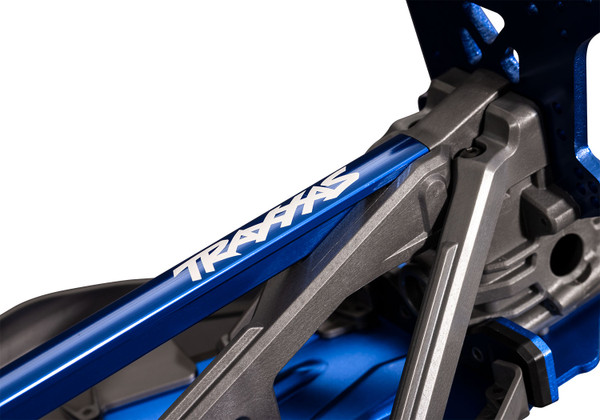

• Thick aluminum T-Bar™ for added rigidity
• High-strength buttressing on shock towers
• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance
• Clipless ProGraphix® Body
• One-handed clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing

Steering

• Waterproof 2275 metal gear servo
• 347 oz-in torque
• High-throw bellcrank steering design
• Heavy-duty servo saver with aluminum posts
• Metal servo horn
• Wheels and Tires
• Huge 6.7″ Sledgehammer all-terrain tires
• Belted carcass resists ballooning
• Tough 3.8″ black wheels
• Splined 17 mm aluminum axle hubs

What’s In The Box:
Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
VXL-6s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
Jumper plug (for 4s battery use)

What You’ll Need:
LiPo Batteries
Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

LiPo Balance Charger with iD®
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
