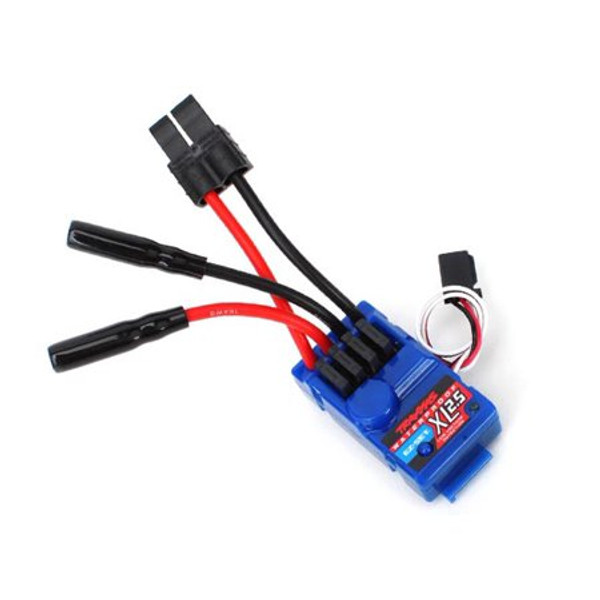

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control in 1/16 scale and smaller models, and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. XL-2.5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-2.5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector*
The XL-2.5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Click here for more info about the patented Traxxas High-Current Connector.

Patented Training Mode™
An exclusive feature that places the XL-2.5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-2.5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

XL-2.5 LVD Waterproof ESC Features

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative waterproof design
• 12-turn motor limit for 550 size motors
• 10-turn motor limit for 380 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set^® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

XL-2.5 LVD WATERPROOF ESC SPECIFICATIONS

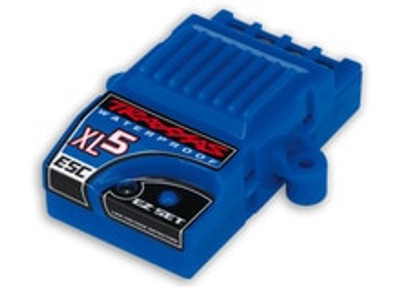

Input Voltage:   4-7 Cells NiMH, 2-Cells LiPo (4.8V - 8.4V DC) Case Size:   26.5mm W x 46.5mm D x 22mm H Weight:   33 Grams Motor Limit:   10-turns** On Resistance (@Trans):   0.008 Ohms Reverse Delay:   None BEC Voltage:   6.0V DC& Parts Upgrades Completion Parts Product Manuals Related Products Quick view TRAXXAS TRAXXAS XL-5 Waterproof ESC w/Low Voltage Detection Compare $63.99 Add to Cart Quick view TRAXXAS Traxxas ECM-2.5 Electronic Control Module, Waterproof (low voltage detection, fwd/rev/brake) Compare $49.95 Add to Cart Quick view TRAXXAS Traxxas VXL-3M Waterproof ESC Compare $99.95 Add to Cart Quick view TRAXXAS Traxxas VXL-3S Brushless ESC (Waterproof) Compare $142.99 Add to Cart Quick view TRAXXAS Traxxas LaTrax Waterproof FWD/REV ESC Compare $60.00 Add to Cart Quick view TRAXXAS Traxxas Auto-Detectable Voltage Sensor Compare $14.00 Add to Cart NO TOOLS? NO TIME? NO PROBLEM. YOU BUY, WE ASSEMBLE! Wallie builds is the top option for any racer looking to have the best available car at the track. These kits are built to be winners and give you the best opportunity for wins and podiums. - Wallie Builds will cover shipping charges to anyone in the US. - Once the sale leaves beachRC and arrives at Wallie Builds we will take full responsibility for the order. - Anything with the build will be handled by Wallie Builds. × OK Free Shipping On $100 Orders Rewards Program Secure Shopping Ask An Experts × Ask Our RC Experts anything. We will follow up with you via email within 24-48 hours. Please answer the following questions Do you need: Pricing Answers Both What can i help you with today ? How would you like me to contact you ? Phone Email Both Send Question × The cookie settings on this website are set to 'allow all cookies' to give you the very best experience. Please click Accept Cookies to continue to use the site. Accept Cookies privacy policy
