Traxxas X-Monster Chassis (No Body)

No reviews yet Write a Review

843-273-6922

SKU:
TRA77036-4-WB
UPC:
020334074232
Availability:
Call for Availability 843-273-6922
Weight:
28.00 LBS

Traxxas X-Monster Chassis (No Body)

X-Maxx Toughness. Monster Truck Style.

The new X-Monster Chassis combines the legendary power and durability of X-Maxx with even more strength,

larger size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires

deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks

of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of

extreme 8s power!

Legacy of Toughness



Traxxas set a new standard for RC monster trucks with the release of the original X-Maxx. Since then, X-Maxx

has only grown stronger and more powerful with each generation. The new X-Monster Chassis incorporates the

latest and greatest X-Truck® upgrades to create the strongest chassis and driveline ever offered.

New Monster Truck Wheels & Tires

New Monster Truck Wheels & Terra Groove Tires



All new chevron-pattern monster truck tires give the X-Monster Chassis a livelier feel with improved grip and greater

control. The huge 8.6” tires are made from an ultra-soft compound for incredible traction with internal belting to reduce

ballooning. Replica white monster truck wheels feature military-style hubs for an authentic scale appearance.

Choose Your Body

Choose Your Body (Sold Separately)

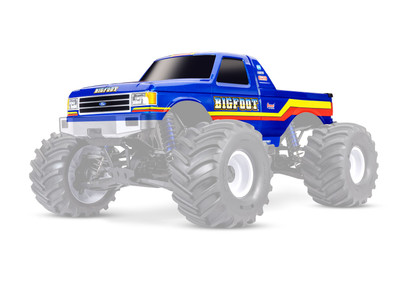

Pair the X-Monster Chassis with a replica Ford® F-150®, Chevrolet® C/K, or BIGFOOT® No. 8 body (sold separately).

Each body features a full-length reinforced body cage for maximum rigidity. Already have a custom-painted X-Maxx body?

The X-Monster Chassis also accepts existing X-Maxx clipless bodies!

MODEL SPECS

Name: X-Monster Chassis
Type: Monster Truck
Speed: 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level: 6
Scale: X-Truck
Weight: 19.1 pounds (8.66 kg)
Length: 30.67 inches (779 mm)
Width: 21.3 inches (540 mm)
Front Track: 21.3 inches (540 mm)
Height: 13.99 inches (355 mm)

MOTOR SPECS

Name: Velineon 1200XL
Motor Type: 1275 Kv sensorless brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors

ESC SPECS

Name:

Velineon VXL-8s

ESC Type:

Brushless

Case Size:

2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)

Weight:

7.60 ounces (215.5 g)

Motor Connectors:

6.5 mm bullet connectors

Battery Connectors:

Traxxas High-Current Connectors

Power Wire:

10 gauge Maxx® Cable



X-Monster Chassis (77036-4)

X-Monster Chassis (77036-4)

MODEL 77036-4: Fully assembled X-Monster Chassis with TQi™ 2.4 GHz Radio System, VXL-8s Brushless Power System,

belted chevron tires. Requires MT body (sold separately).

What’s In The Box:

  • X-Monster Chassis with Traxxas Big Block brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Optional high speed pinion gear
  • TQi 2.4 GHz radio system
  • High quality maintenance tools

What You’ll Need:

  • Body

    Select your X-Monster body from one of several available options.

  • Batteries

    X-Monster requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh

  • Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X).

  • Charger

    EZ Peak Live Dual 4s LiPo Charger with iD®

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.
