The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler…Only from Traxxas.
Vehicle Specs:
Length (overall): |
22.98 inches (584mm) |
Length (chassis): |
21.59 inches (549mm) |
Front Track: |
9.78 inches (249mm) |
Rear Track: |
9.78 inches (249mm) |
Ground Clearance: |
3.14 inches (80mm) |
Weight: |
6.42lb (2.91kg) |
Height: |
9.4 inches (239mm) |
Wheelbase: |
12.8 inches (324mm) |
Front Shock Length: |
3.54 inches (90mm) |
Rear Shock Length: |
3.54 inches (90mm) |
Front Wheels: |
1.9 x 1.02 inches (49 x 26mm) |
Rear Wheels: |
1.9 x 1.02 inches (49 x 26mm) |
Front Tires: |
4.64 x 1.89 inches (118 x 48mm) |
Rear Tires: |
4.64 x 1.89 inches (118 x 48mm) |
Approach Angle: |
52° |
Departure Angle: |
49° |
Breakover Angle: |
58° |
Hex Size: |
12mm |
Speed Control: |
XL-5 HV |
Motor (electric): |
21T Reverse Rotation |
Transmission: |
2-speed Hi-Lo, Remote Shifting |
Gear Pitch: |
32P |
Differential Type: |
4 Gear, Remote Locking |
Chassis Structure / Material: |
Steel Ladder Frame with Nylon Composite Crossmembers |
Brake Type: |
Electronic “Hill Hold” |
Drive System: |
Shaft Driven 4WD |
Steering: |
Chassis Mounted Servo |
Servo: |
2075X Metal Gear |
Transmitter: |
TQi™ 2.4 GHz 4-Channel Transmitter |
Receiver: |
6533 |
Skill Level: |
1 |
Battery Tray: |
158.75 L x 47 W x 23/26mm H |
Features:
- Officially Licensed 2021 Ford® Bronco Body
- Two-tone paint with black roof and clear windows
- LED-ready headlights and tail lights with multi-function capability
- Scale details
- Black molded grille with white Bronco logo
- Replica hood cowl w/ wipers and folding mirrors
- Replica spare tire mount
- Replica door handles
- Tough PVC fender flares, wheel wells, and floor pans
- Front and rear Bronco bumpers with skid plate and replica winch
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan™ 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts

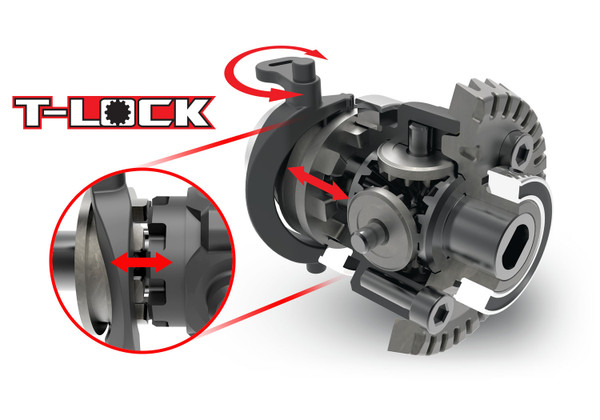

- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends

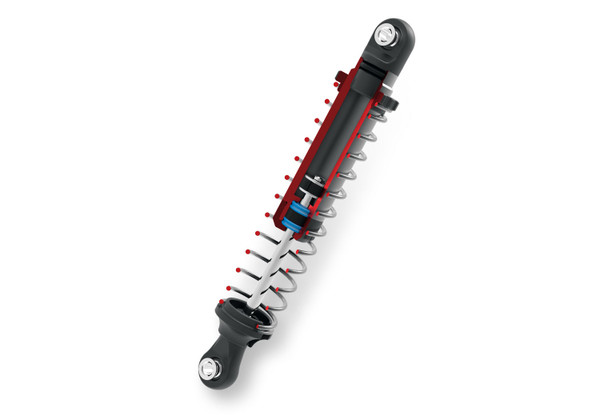

- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Replica black 2021 Bronco wheels
- Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
- Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
What’s In The Box:
- TRX-4, Ready-To-Race® model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger - Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
