TRAXXAS

TRAXXAS Stampede 2WD Brushless

No reviews yet

$329.95

SKU:: TRA136454-4-RED
Availability:: Usually ships within 24 hrs
Weight:: 18.00 LBS
Shipping:: Calculated at Checkout
MAP:: 329.95

TRAXXAS Stampede 2WD Brushless

$329.95

Description
Parts
Upgrades
Completion Parts
Product Manuals

Description

MODEL 136454-4: Stampede^® 2WD Brushless: 1/10 scale monster truck, fully-assembled, waterproof, Ready-To-Race^®, with TQi™ 2.4 GHz 2-channel radio system with Punch Control, Velineon^® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Stampede 2WD monster truck with VX3 ESC and V3200 motor
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
  Stampede 2WD Brushless requires a single 2-cell or 3-cell LiPo battery (NiMH not supported)
- Charger
  The Traxxas EZ-Peak^® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
  Four AA alkaline batteries for the transmitter.
35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
NEW Clipless Monster Truck Body with Bash-Locks™
- Clipless latches hold tight and release in seconds
- NEW Bash-Locks secure the clipless latches firmly into place for extreme bashing
- Injection-molded grille and tailgate body reinforcements
  - Superior body protection for extreme bashing

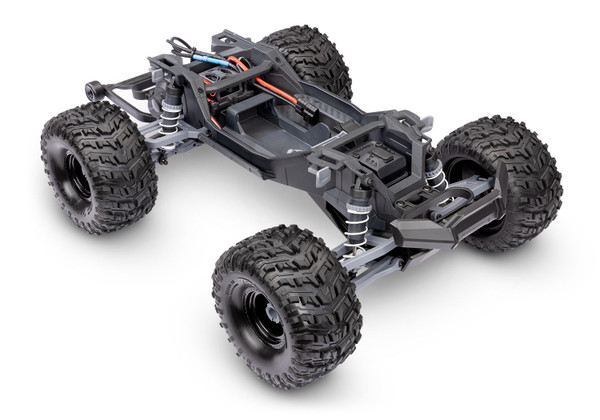

NEW Monocoque Chassis Design
- Shock towers are integrated into the chassis
  - Reinforced crossbar supports
  - Double-shear shock mounts
- Longer and wider footprint
  - Increases handling and high-speed stability
- Ultra-tough front and rear bulkheads and skid plates
  - Integrate seamlessly into the chassis
- Reinforced front bumper and fixed wheelie bar
NEW Velineon^® VX3 Waterproof Electronic Speed Control
- Large aluminum heat sink with cooling fan
- Three programmable drive profiles
  - Sport Mode - forward / brake / reverse
  - Race Mode - forward / brake
  - Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Telemetry capable with optional accessories
- High-Resolution Linear Braking
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)

NEW Velineon V3200 Brushless Motor (patent pending design)
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3200 Kv optimized for power and efficiency in 1/10th scale vehicles
- 5 mm output shaft
- Internal cooling fan for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
TQi™ 2.4 GHz 2-Channel Radio System
- High-output signal delivers outstanding range
- Multi-function knob
- 30-model memory
- 3-channel micro receiver with fail-safe security
- Watertight receiver box with O-ring sealed cover
NEW Punch Control™
- Dials in the perfect launch for any surface
- Adjusts the amount of throttle applied relative to trigger pull
- Adjusts from 0-100% using transmitter's Multi-Function knob
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on power slides
- Never dulls throttle or slows the truck
NEW Double-Wishbone Suspension Design
- Maintains proper suspension geometry
- Allows huge suspension travel
- Double-shear connections
- Extreme HD suspension components and arms
  - Beefed-up with extra material for superior strength

NEW Battery Tray Design
- Battery is protected deep in the chassis
- Rugged battery strap latches shut to secure batteries
- No battery clips to lose
- Accepts many 2s and 3s battery configurations
Steering
- NEW 2057 waterproof, metal-gear servo
  - Full metal gear train for improved durability
- NEW dual-bellcrank design with integrated servo saver
Transmission and Driveline
- Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- NEW 32-pitch spur and pinion gear
- NEW heavy-duty top shaft
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
NEW XX-long Composite GTR Shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Spring retainers captured with a screw
- 3.5 mm shaft
Wheels and Tires
- Large 2.8″ black monster truck wheels
  - Removable center caps
  - Same wheel offset front and rear
- NEW Talon MXT Tires
  - Tall monster truck profile
  - Angled tread pattern for massive forward bite
Precision Hex Hardware
Rubber-Sealed Ball Bearings

MODEL SPECS

Name:	Stampede 2WD Brushless
Type:	Monster Truck
Speed:	35+ mph with 2s LiPo battery, 50+ mph with 3s
Skill Level:	1
Scale:	1/10
Weight:	6.09 pounds (2.76 kg)
Length:	20.28 inches (515 mm)
Width:	13.86 inches (352 mm)
Track:	13.86 inches (352 mm)
Height:	8.34 inches (212 mm)

Wheelbase:	11.65 inches (296 mm)
Ground Clearance:	3.54 inches (90 mm)
Driveline:	Rear Wheel Drive
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	9.52:1
Gear Pitch:	32 pitch
Steering Servo:	2057 metal gear waterproof
Radio System:	TQi 2.4 GHz 2-channel radio
Battery Compartment Specs:	166 mm X 47.5 mm X 28 mm

MOTOR SPECS

Name:	Velineon V3200 (patent pending)
Motor Type:	Sensorless brushless
Weight:	7.48 ounces (212 g)
Length:	3.15 inches (80 mm)
Diameter:	1.53 inches (39 mm)
Shaft Size:	5 mm
Connector Type:	3.5 mm Bullet

ESC SPECS

Name:	VX3 Electronic Speed Control
ESC Type:	Brushless
Voltage Range:	2-cell or 3-cell LiPo (NiMH not supported)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	6.0 volts
Motor Connectors:	3.5 mm Bullet
Battery Connectors:	Traxxas High-Current Connector
