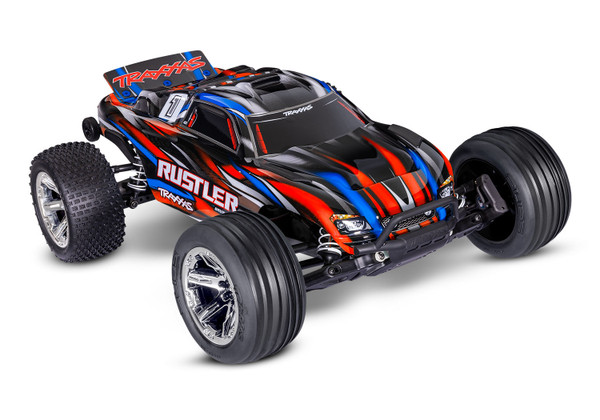

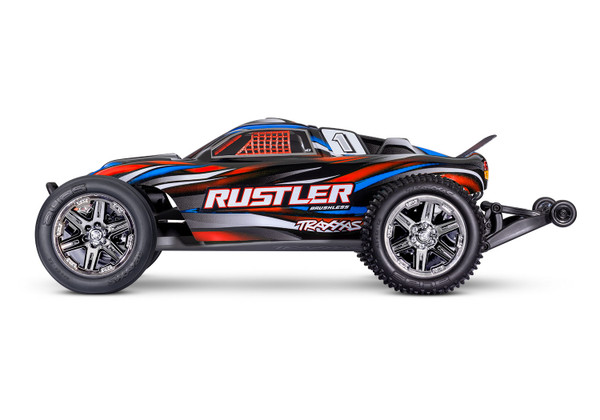

THE #1 STADIUM TRUCK GOES BRUSHLESS

Rustler® sits low and wide for maximum stability with a lightweight chassis for agile handling not found on other trucks. Rustler dominates dirt tracks and tears up tarmac with a blistering 40+ mph top speed thanks to its new BL-2s™ brushless power system. Rustler delivers power-sliding, full-throttle fun in a Ready-to-Race® package that’s been fortified with Traxxas’ Extreme Heavy Duty components to take brutal punishment in stride.

Add the 2992 Battery/Charger Completer Pack for the Ultimate Combo.

MODEL SPECS
Model Name: Rustler 2WD BL-2s HD
Model Type: Stadium Trucks
Model Speed: 35+ mph with 7-cell battery
Model Skill Level: 1
Scale: 1/10
Weight: 3.73 pounds (1.69 kg)
Length: 17.5 inches (445 mm)
Width: 12.25 inches (311 mm)
Front Track: 12.25 inches (311 mm)
Rear Track: 12.25 inches (311 mm)
Height: 7 inches (178 mm)
Wheelbase: 11.38 inches (289 mm)
Drivetrain: 2WD
Transmission: Magnum 272™
Differential Type: Planetary steel gear
Gear Ratio (Internal): 2.72 (final drive: 10.17)
Gear Pitch: 48 pitch
Servo(s): 2056 high torque waterproof
Radio System: TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs: 166 mm X 47.5 mm X 28 mm

MOTOR SPECS

Motor Name: BL-2s 3300 kV
Motor Type: Sensorless brushless
Motor Weight: 7.51 ounces (213 g)
Motor Length: 3.15 inches (80 mm)
Motor Diameter: 1.42 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name: BL-2s Electronic Speed Control
ESC Type: Brushless
ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight: 3.07 ounces (87 g)
Motor Connectors: Traxxas Quick Connect Motor Plug
Battery Connectors: Traxxas High-Current Connector

Features:

• Clipless Stadium Truck Body
• Tough LED-ready front and rear bumpers
• Includes wheelie bar
• Aerodynamic body with rear wing
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan
• Three Programmable Drive Profiles
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake
• Training Mode™ - 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)
• BL-2s Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV
• Virtually maintenance-free
• Extreme Heavy Duty Parts Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• HD suspension arms
• Extreme heavy duty driveshafts
• Extra material for improved strength
• TQ™ 2.4 GHz 2-Channel Radio System
• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• O-ring sealed watertight receiver box keeps the receiver dry
• Easy Access Battery Compartment
• Adjustable battery hold down
• Accepts 6- and 7-cell flat packs and 7-cell hump packs
• Accepts many 2s LiPo battery configurations

Transmission and Driveline

• Velineon®-ready Magnum 272™ metal-gear transmission
• Torque-Control™ slipper clutch system
• Planetary gear differential with steel ring gear
• Sealed gearbox protects the transmission with beefed up motor guard
• External gear cover with easy clutch access
• Tough Fiber-Composite Monocoque Chassis
• Wide, low-profile design for increased stability

Steering

• High-torque waterproof Traxxas 2056 steering servo
• Spring-loaded servo saver helps protect against impacts

Suspension

• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off
• Springs and Shocks
• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder-coated springs

Wheels and Tires

• Pre-glued Alias® step-pin rear tires and ribbed front tires with performance foam inserts
• 2.8″ All-Star™ wheels
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

Battery and Charger Sold Separately

MODEL 37354-4: Rustler^® BL-2s^™: 1/10 2WD brushless stadium truck, fully-assembled,
waterproof electronics: Ready-To-Race^®, with TQ^™ 2.4 GHz 2-channel radio system, BL-2s^™ brushless power system, and clipless painted body. Requires: battery and charger.
