Pro Scale^® Realism

Flood the desert with brilliant white light with the new

High-IntensityLED Off-Road Light Kit for the Traxxas

Unlimited Desert Racer^®.

Traxxas innovation delivers features, performance, and

detailed scale looks not found on any other lighting system.

The included Traxxas High Voltage Amplifier packs the

muscle to efficiently power the 204 individual LEDs in the

kit while minimizing losses from excessive current and

heat. The tightly regulated output provides stable lighting

performance, without flickering or dimming as the battery

voltage changes. In another Traxxas first, the smart brake

lights work when brakes are applied in both forward and

reverse directions. This eliminates the common and annoying

problem with generic aftermarket systems that turn on the

brake lights while reversing.

High-Voltage Power
Rather than draw valuable power away from the BEC, the power

amplifier uses the Power Port on the VXL-6s ESC to tap power

directly from the batteries. The power amplifier transforms and

regulates battery current to for reliable high-power performance.

Technology
Three different lighting modes on the amplifier let you control

which lights illuminate. Use the Traxxas Link App* to further

customize the lighting modes to your specifications or turn the

lights on and off directly in the app. The kit includes all mounting

hardware to make installation a breeze. The LED Light Bar Kit

comes as a complete set or as individual components allowing

Desert Racer owners to select the exact setup to meet their needs.

LED Configuration with Traxxas Link App

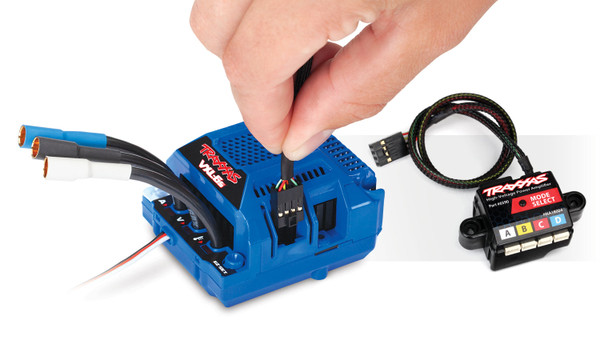

Wiring is simple: Plug the main connector from the power amplifier

into the power port on the Velineon^® VXL-6s^™ Electronic Speed Control

found in the Unlimited Desert Racer, and then plug the individual lighting

modules into the power amplifier. Switch between three manual lighting

modes on the power amplifier (such as high beam and low beam), or use

the Traxxas Link app and Wireless Module (6511*) to control individual

lights remotely and create custom lighting configurations. Of course,

since it’s from Traxxas, this powerful, feature-rich system is rugged and

fully waterproof for all of your exciting RC adventures.

Individual LED Light Kit Components

High-Voltage Power Amplifier
The High-Voltage Power Amplifier 6590 takes power directly from the

VXL-6s ESC and transforms it into steady, regulated current for long LED

life. The waterproof amplifier includes four separate connection ports

with a 3-mode toggle switch. Pair the amplifier with any of the Desert Racer

light bars for a new level of scale lighting performance.

Curved Roof Light Bar
The Curved Roof Light Bar 8488 matches perfectly the contours of the body

and secures directly to the Desert Racer's integral frame for extra strength.

The light bar casts a field of light ahead for nightime driving and features

high and low settings accessible through the power amplifier.

(Requires 6590 Power Amplifier)

Front Grill LED Light Bar
The front LED light bar 8486 mounts directly to the front bumpers with the

included mounts to illuminate the path ahead. The light bar features high and

low settings accessible through the power amplifier. For even more illumination,

add a second front light bar using the 2-in-1 wire harness 8489.

(Requires 6590 Power Amplifier)

Rear LED Light Bar
Brake lights should function like brake lights. That’s why the Desert Racer’s

light kit recognizes the difference between braking and reversing. The rear

multi-color LED light bar 8487 features both yellow class lights and red

brake/tail lights. The rear light bar secures directly to the frame for

unparalleled strength. (Requires 6590 Power Amplifier)
