Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.

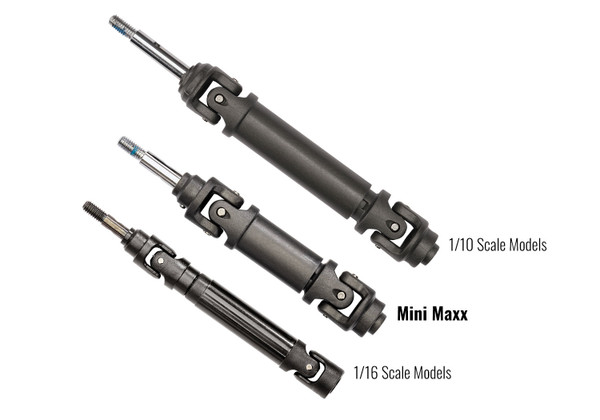

Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

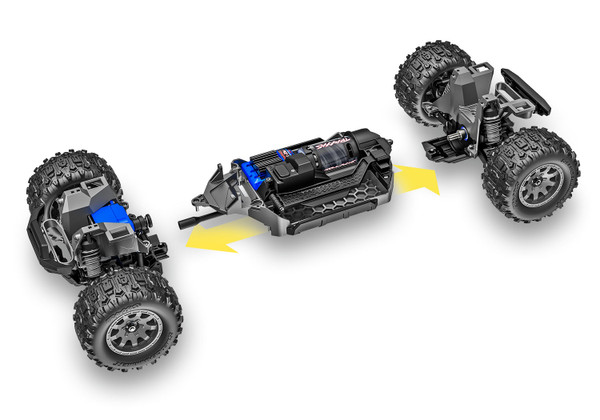

Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.
Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.
| Length: | 13.58 inches (345 mm) |
|---|---|
| Front Track: | 9.94 inches (253 mm) |
| Rear Track: | 9.94 inches (253 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Height: | 5.39 inches (137 mm) |
| Wheelbase: | 8.66 inches (220 mm) |
| Shock Length: | 3.45 inches (88 mm) |
| Tire Diameter: | 3.93 inches (100 mm) |
| Wheel Diameter: | 2.1″ (53 mm) outer, 2.6″ (66 mm) inner |
| Speed Control: | BL-2s brushless ESC |
| Motor (electric): | BL-2s sensorless brushless (3300 Kv) |
| Transmission: | Direct-drive |
| Overall Drive Ratio: | 9.20:1 |
| Differential Type: | Planetary, steel gear |
|---|---|
| Gear Pitch: | 32 |
| Chassis Structure/Material: | Composite modular tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | Dual-profile wheels with pre-glued Sledgehammer® tires |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof high-torque 2056 |
| Top Speed: | 30+ mph |
| Skill Level: | 1 |
| Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
| Required Batteries: |
4 “AA” (transmitter)
|
