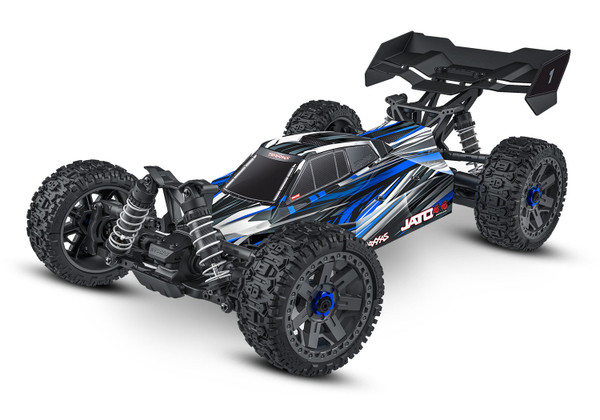

Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.

Specs:

Model Type: 1/8 scale buggy
Skill Level: 1
Length: 20.4 inches (517 mm)
Width: 12 inches (305 mm)
Height: 7 inches (179 mm)
Weight: 5.2 pounds (2.36 kg)
Wheelbase: 12.6 inches (320 mm)
Front Track: 12 inches (305 mm)
Rear Track: 12 inches (305 mm)
Shock Length (front): 3.98 inches (101 mm) - XX-long
Shock Length (rear): 3.98 inches (101 mm) - XX-long
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Overall Drive Ratio: 12.80:1
Drive System: Shaft-driven 4WD
Steering: Dual-bellcrank with integrated servo saver
Chassis Structure/Material: Composite tub
Tires: 4.53″ Sledgehammer® with foam inserts
Wheels (front/rear): 3″ gray buggy wheels
Wheel Diameter: 3″ inches (78 mm)
Radio System: TQ™ 2.4 GHz (2-channel)
Servo: Waterproof digital 2075 servo (125 oz-in torque)
Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm

MOTOR SPECS

Motor Type: BL-2s 3300 kV sensorless brushless motor
Weight: 7.51 ounces (213 g)
Length: 3.15 inches (80 mm)
Diameter: 1.42 inches (36 mm)
Shaft Size: 3 mm
Connector Type: Traxxas Quick Connect Motor Plug

Features:

• Clipless Body
• Holds tight for intense action
• Quick and easy removal

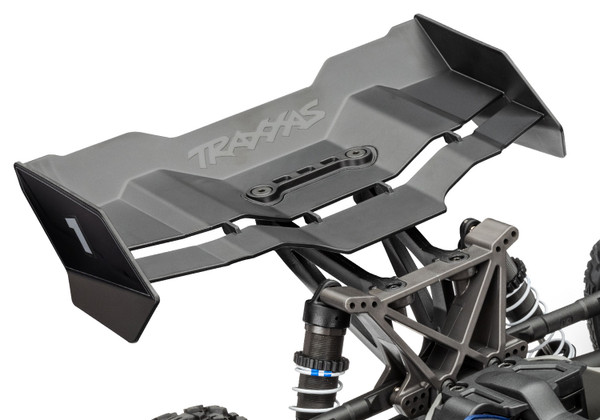

• High-downforce wing
• Extreme Heavy Duty Upgrade Kit Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Heavy duty one-piece camber & toe links
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• 17 mm hex hubs
• Aluminum wheel nuts
• TQ™ 2.4 GHz Transmitter
• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)
• 3300 kV Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV

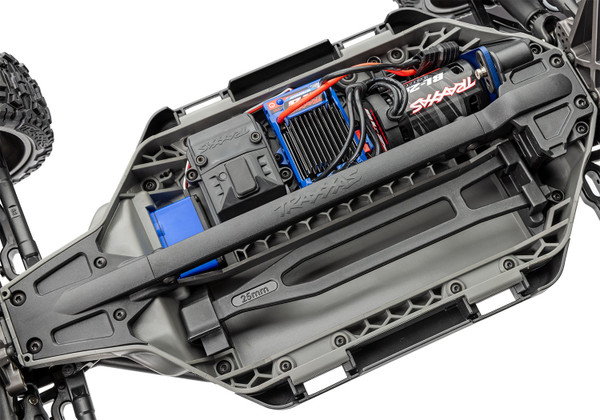

Chassis

• T-Bar chassis stiffener
• Modular composite tub design
• Secure battery hold-down latch
• Low-CG design
• High-clearance skid plate

Suspension

• Heavy duty shock towers
• Reinforced shock mounts
• Double-shear camber link connections
• Heavy duty suspension arms

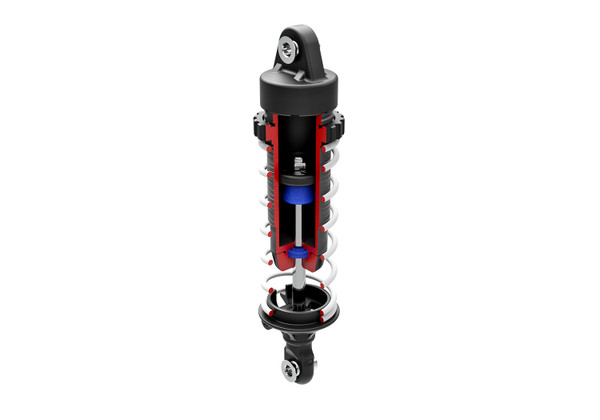

• Oil-filled GTR shocks
• Threaded shock collars for precise ride height adjustment
• Large oil capacity for consistent damping
• White powder-coated springs

Driveline

• Full-time shaft-driven 4-wheel drive
• Sealed steel gear front and rear differentials
• Large 32-pitch spur gear
• Heavy-duty slipper clutch
• Wheels and Tires
• 3″ gray buggy wheels
• 4.5″ Sledgehammer® tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

MODEL 90154-4: Jato® 4X4 BL-2s: 1/8 scale 4X4 brushless buggy, Ready-To-Race® with factory-installed Extreme HD kit, waterproof electronics, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ speed control, and clipless painted body. Requires: battery and charger.

What’s In The Box:

• Jato 4X4 with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:
Batteries
Jato 4X4 requires a 7.4-volt LiPo battery or 8.4-volt NiMH battery.

Charger
The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
