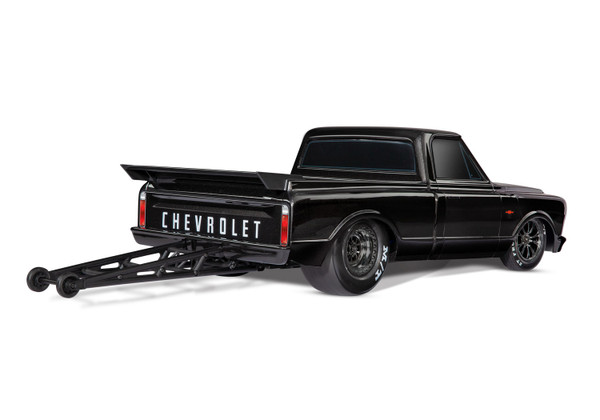

• Licensed Chevrolet® C10 Body

  • Durable ProGraphix® polycarbonate body
  • Available in six rich metallic colors
  • Injection-molded bi-level grille
  • High-performance injection-molded rear wing
  • Provides traction-enhancing downforce
  • Reduces drag and turbulence
  • LED-ready headlight surrounds
  • Deeply recessed bed recreates “tubbed” look
• VXL-3s™ Waterproof Electronic Speed Control
  • Three programmable drive profiles:
    • Sport Mode - Forward / Brake / Reverse
    • Race Mode - Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set® one-button setup
  • High-efficiency heat sink
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
  • LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® 3500 kV Brushless Motor
  • Ultra high-temperature sintered Neodymium magnets
  • Low-maintenance, unique Traxxas design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • Brilliant blue-anodized finish

• Extreme Heavy Duty Parts Installed
  • Strengthened C-hubs, axle carriers, and steering blocks
  • HD suspension arms
• Traxxas Stability Management® (TSM)
  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
  • Drag Race Mode to disable TSM where prohibited
• TQi™ 2.4 GHz High Output Radio System
  • TQi 3-channel transmitter
  • Trans Brake switch for lightning-fast launches
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • Patented waterproof receiver box

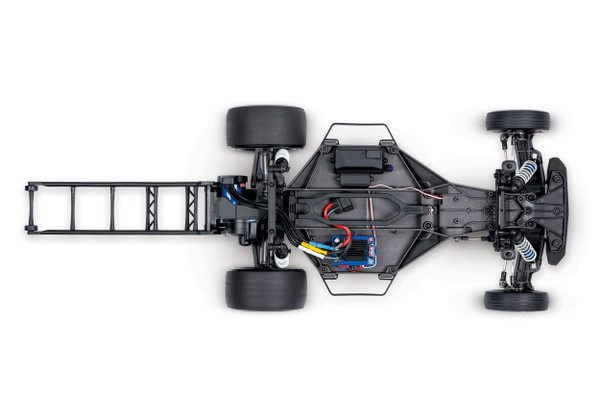

• Low Center of Gravity (Low CG) Chassis

  • Positions weight low for improved stability
  • Adjustable battery hold down
  • Smooth underside reduces drag
  • Chassis-mounted front bumper for extra protection

• Magnum 272R™ Transmission

  • Redesigned heavy-duty low-CG case
  • Heavy-duty 3.2 mm aluminum motor plate
  • Case supported bearings
  • Fixed gear mesh
  • High-strength steel gears
  • Sealed bevel-gear differential
  • Easy differential access
• Drivetrain

  • Modified extreme-duty driveshafts
  • Torque Control™ slipper clutch
• Extended Wheelie Bar

  • 5 position adjustability
  • Reinforced double-ladder construction
  • Large and small wheels included to refine tuning
• Steering
  • Chassis-mounted 2075 servo
  • Dual-bellcrank steering with integrated servo saver
• High Performance Suspension

  • 4 mm adjustable steel turnbuckles
  • Heavy-duty captured links won’t pop off
• Drag-Tuned Ultra Shocks™

  • Fully adjustable and oil-filled with X-ring technology
  • Stiffer springs and silicone oil for improved traction
  • Custom bump stops provide solid ride control

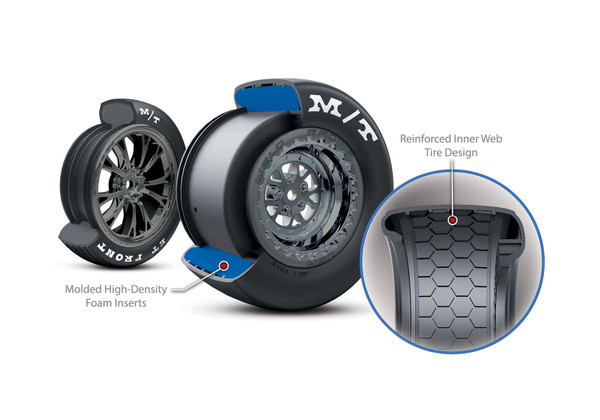

• Wheels and Tires

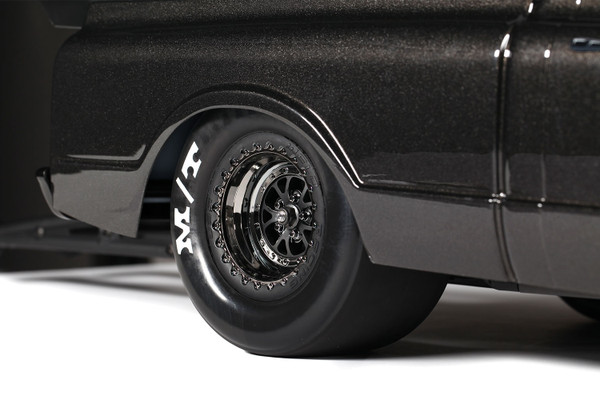

  • Replica Weld Racing wheels for a classic look
  • Replica Mickey Thompson® ET® drag slicks
  • Unique compound balances long life and superior grip
  • Molded high-density tire foam
  • Webbed inner structure for increased durability
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware
• Requires Battery and Charger (Sold Separately)

Specs:

Motor Specs

Motor Name:	Velineon® 3500
Motor Type:	Sensorless brushless
Motor Weight:	9.24 ounces (262 g)
Motor Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	3.5 mm bullet

ESC Specs

ESC Name:	VXL-3s™ electronic speed control
ESC Type:	Brushless
ESC Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	12 gauge Maxx® Cable
