BIGFOOT NO. 1 THE ORIGINAL MONSTER TRUCK

Traxxas faithfully captures the spirit and classic look of BIGFOOT® No. 1 “The Original Monster Truck” in amazing detail with this fully licensed replica. With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.

Add the 2992 Battery/Charger Completer Pack for the Ultimate Combo.

MODEL SPECS

• Model Name: BIGFOOT No. 1 BL-2s HD
• Model Type: Monster Truck
• Model Speed: 30+ mph with 7-cell battery
• Model Skill Level: 1
• Scale: 1/10
• Weight: 4.08 pounds (1.85 kg)
• Length: 16.25 inches (413 mm)
• Width: 12.75 inches (324 mm)
• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Height: 9.5 inches (241 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272™
• Differential Type: Planetary steel gear
• Gear Ratio (Internal): 2.72 (final drive: 12.34)
• Gear Pitch: 48 pitch
• Servo(s): 2056 high-torque waterproof
• Battery Compartment Specs: 164 mm X 46 mm X 26 mm

MOTOR SPECS

• Motor Name: BL-2s 3300 kV
• Motor Type: Sensorless brushless
• Motor Weight: 7.51 ounces (213 g)
• Motor Length: 3.15 inches (80 mm)
• Motor Diameter: 1.42 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Traxxas Quick Connect Motor Plug

ESC SPECS

• ESC Name: BL-2s Electronic Speed Control
• ESC Type: Brushless
• ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
• ESC Weight: 3.07 ounces (87 g)
• Motor Connectors: Traxxas Quick Connect Motor Plug
• Battery Connectors: Traxxas High-Current Connector

Features:

• Licensed BIGFOOT® No. 1 Clipless Body
• Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
• Chrome front bumper with replica winch
• Chrome grille with light buckets and reflectors
• Replica high-rise dual-carb intake manifold
• Chrome roll bar with replica KC lights
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Includes wheelie bar
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan
• Three Programmable Drive Profiles
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake
• Training Mode™ - 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)
• BL-2s Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV
• Virtually maintenance-free
• Extreme Heavy Duty Parts Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• HD suspension arms
• Extreme heavy duty driveshafts
• Extra material for improved strength
• TQ™ 2.4 GHz 2-Channel Radio System
• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• O-ring sealed watertight receiver box keeps the receiver dry
• Easy Access Battery Compartment
• Adjustable battery hold down
• Accepts 6- and 7-cell flat packs and 7-cell hump packs
• Accepts many 2s LiPo battery configurations

Transmission and Driveline

• Velineon®-ready Magnum 272™ metal-gear transmission
• Torque-Control™ slipper clutch system
• Planetary gear differential with steel ring gear
• Sealed gearbox protects the transmission with beefed up motor guard
• External gear cover with easy clutch access
• Tough Fiber-Composite Monocoque Chassis

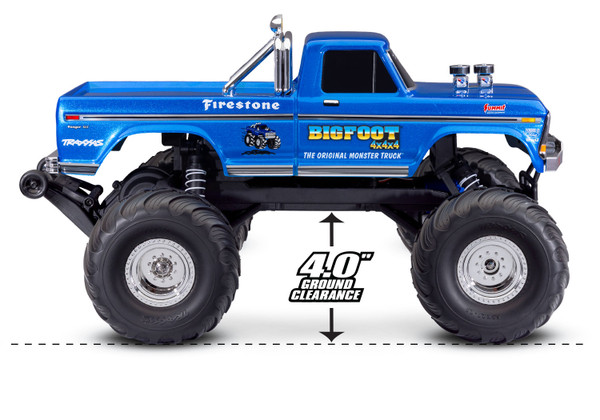

• Tall 4″ center ground clearance to drive over obstacles

Steering

• High-torque waterproof Traxxas 2056 steering servo
• Spring-loaded servo saver helps protect against impacts

Suspension

• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off

Springs and Shocks

• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder-coated springs

Wheels and Tires

• Pre-glued high profile Terra-Groove shaved monster truck tires
• 2.2″ Deep dish mirror-chrome beadlock-style wheels
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

MODEL 36334-4: BIGFOOT® NO. 1 BL-2s™: 1/10 scale 2WD brushless monster truck, fully-assembled,
waterproof electronics: Ready-To-Race®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and clipless painted body. Requires: battery and charger.
