The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.
The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

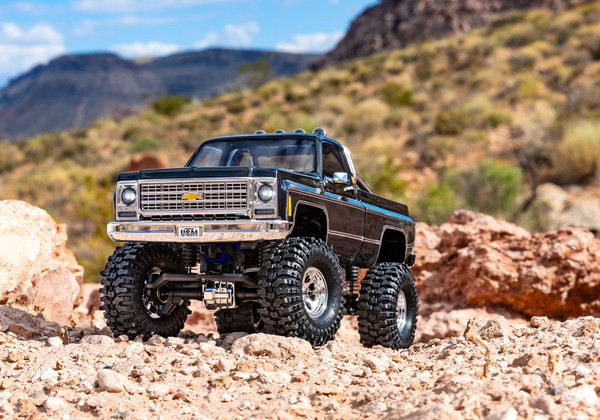

The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.
| Length: | 10.6 inches (269mm) |
|---|---|
| Front Track: | 5.0 inches (127mm) |
| Rear Track: | 5.0 inches (127mm) |
| Center Ground Clearance: | 1.57 inches (40mm) |
| Weight (with battery): | 1.03lbs (468g) |
| Height: | 5.0 inches (127mm) |
| Wheelbase: | 6.38 inches (162mm) |
| Approach Angle: | 62° |
| Breakover Angle: | 51.5° |
| Departure Angle: | 52° |
| Shock Length (front and rear): | 2.0 inches (51mm) |
| Hex Size: | 7mm |

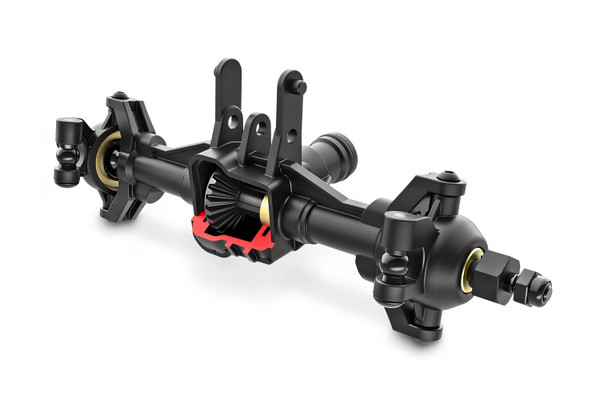

| Differential Type: | Fully Locked; 2:1 Axle Ratio |
| Wheels (front and rear): | 1.0 x 0.49 inches (25.4 x 12.5mm) |
|---|---|
| Tires (front and rear): | 2.4 x 1.0 inches (61.9 x 25.6mm) |

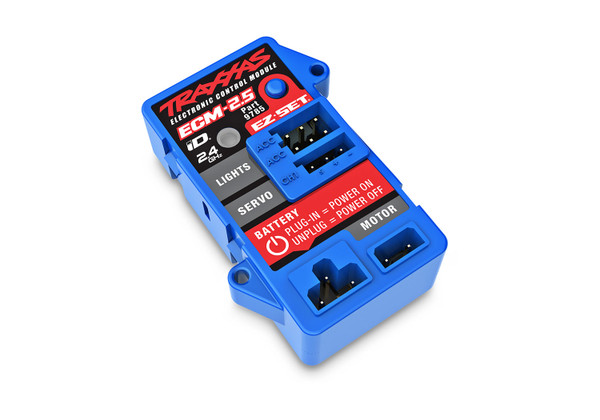

| Electronic Control Module: | ECM-2.5™ (Combo ESC, Receiver, Lighting Control*) |
| Motor (electric): | Titan® 180 87T |
| Chassis Structure/Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft-Driven 4WD |
| Steering: | Axle-Mounted Servo |
| Radio System: | TQ™ 2.4GHz 2-Channel Transmitter |
| Servo: | #2065T Heavy Duty Waterproof |
| Skill Level: | 1 |
| Battery Tray: | 50.5mm L X 31mm W |
| *Requires accessory Pro Scale LED Light Kit, sold separately | |
