Tekin’s RX4 Brushless Sensored ESC is designed to power your chassis past any obstacle. With massive power handling capabilities, a waterproof* design and all the customization features you’d expect from a Tekin ESC; the RX4 has you covered no matter the situation. Not only reliable, this ESC has a host of built in features like a High Voltage BEC, Drag Brake, Data Logging and the ability to run either Brushed or Brushless motors. The RX4 defines versatility.

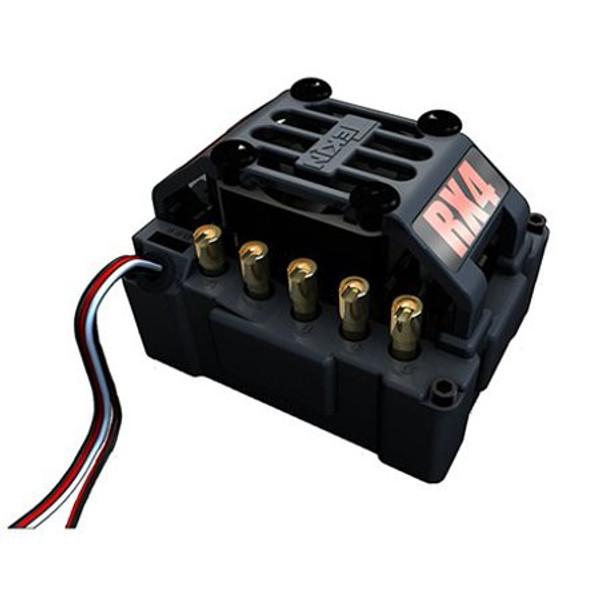

The RX4 Housing is a thick-walled, reinforced Hardbox design able to withstand the elements and rough environments that come with true Offroad adventuring.

Rocks, Dirt, Snow, Sand, Mud, Trail and Track; the RX4 is no-limits RC fun.

*Waterproof in sensorless operation only. Dielectric Tek Grease provided for waterproofing sensor ports.

Recomended Applications:

ROCK CRAWLING

_ÑÊ 1.9 & 2.2 Trail Adventure

_ÑÊ 1.9 & 2.2 Rock Race

Specs:

Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - 5700kV 4-pole
3S - 3100kV 4-pole
4S - 2300kV 4-pole
5S - 1800kV 4-pole
6S - 1200kV 4-pole
Motor Limit Brushed Mode: No Limit
Max Current: *240amps per phase
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.6 x 2.0 x 1.4" / 40.6 x 50.8 x 35.5mm
Weight: 2.65oz / 75.5g

*Per Mfg Specs

Features:

• *HardBox Waterproof Design
• _ÑÊ Ultra-smooth and Precise Throttle and Braking Control
• _ÑÊ Compatible with Sensored/Sensorless Brushless and Brushed Motors
• _ÑÊ Easily Access Programming, Anywhere, Anytime
• _ÑÊ Datalogging Capability
• _ÑÊ High Voltage Programmable BEC
• _ÑÊ EZ Access HotWire Programming Port
• _ÑÊ HotWire PC Interface for Advanced Programming and Updating
• _ÑÊ D2: Dual Drive Mode Technology
• _ÑÊ On-Board Temperature Indicator
• _ÑÊ HDAC: High Density Copper PCB
• _ÑÊ **Sensor Plug for Precise Commutation with all Motors
• _ÑÊ Gold-plated Solder Posts for Easy Wire Replacement
• _ÑÊ Self Test Diagnostics and Factory Reset
• _ÑÊ Pit Tune Mode
• _ÑÊ DGF2: Digital Glitch Filtering V2
• _ÑÊ QuickTune™ Programming
• _ÑÊ One-Touch Radio Calibration

* Waterproof in sensorless operation only. Dielectric Tek Grease provided for waterproofing sensor ports.

**The RX4 is not intended for operation while submerged in liquid.
