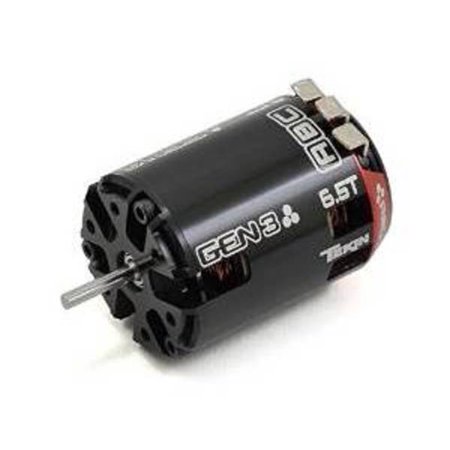

This is the Tekin Redline GEN3 6.5 Turn Brushless Sensored Motor.
FEATURES: CNC machined T 6061 billet aluminum heat sink can
For on- or off-road use
13mm performance rotor for extra torque needed for modified racing
Dual-plug sensor wire harness for all sensored and sensorless systems
Anodized end-bell plates maximize corrosion and wear resistance
High RPM precision ball bearings
Neodymium sintered magnet
Rebuildable
Adjustable timing
Low resistance solder tabs
Solderless sensor PCB replacement
INCLUDES: Redline GEN3 6.5 Turn Brushless Sensored Motor with Sensor Wire
SPECS: Input Voltage: 2S all, 3S-10.5 and up
Shaft Dimensions: 3.2mm (1/8") x 15.3mm
Weight: 5.6oz (158g)
Motor Diameter: 1.40" (35.85mm)
Motor Length: 1.9" (48.5mm)
Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
