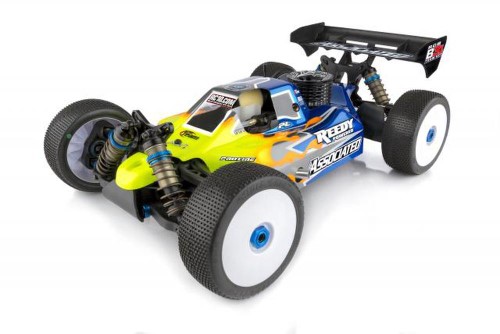

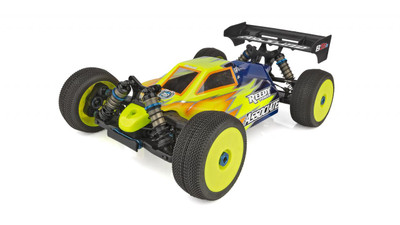

This is the Radio Controlled, Glow Powered, 1/8 Scale
RC8B3.1 Team Buggy Kit from Team Associated.

New features that differ from the RC8B include;
**New 4-Shoe Clutch**
**H.T.C. (High Torque Capacity) Differentials**
**Revised Suspension Arm Pivots for more ground clearance**
**Anti-Roll Linkage Curves altered for more chassis support**
**New Shock Springs**
**Pro-Line Predator Body**

FEATURES: Chassis: 7075-T6 aluminum, 0.12" (3mm) thick
Drive: Four wheel with front and rear 3.7" (94mm) CVA drive shafts
Differentials: H.T.C (High Torque Capacity) with increased fluid
capacity, and a more consistent feel
Gearboxes: 3.38:1 internal ratio with easy access to differentials
Shocks: 16mm Big Bore hard anodized aluminum, 0.14" (3.5mm) diameter
TiN coated alloy shock shafts, silicone shock oil, bleeder style
caps, new 0.79" (20mm) inner diameter springs
Shock Towers: 7075-T6 aluminum
Suspension: Pillow ball front uprights for increased adjustability
and improved durability, refined geometry with hinge pin inserts
for easy roll center adjustments
Body: Pro-Line Predator clear body with black plastic wing
Radio Tray: Carbon fiber with sealed receiver box
Clutch: 4-shoe aluminum
Brake: Bonded pads and machined steel rotors
Fuel Tank: Molded plastic construction with splash guard
Ball Bearings: Factory Team rubber sealed
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis, caster blocks adjust 14, 16, or 18 degrees with molded
inserts
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: RC8B3.1 Team Buggy Kit with Clear Body, Fuel Tank, Shocks, Decals and
Shock Oil, Diff Oil, Air Filter and Instruction Manual

REQUIRES: Radio: 2-channel with high torque steering servo
Engine: .21 cu in rear exhaust
Exhaust System: Tuned pipe compatible with selected engine
Receiver Pack: 4.8 - 7.4V flat, LiPo, LiFe or NiMH
Wheels: 1/8 scale buggy
Tires: 1/8 scale buggy
Fuel: Model car blend, 20% nitro recommended
Glow starter, fuel bottle, starter box, tools and track equipment

SPECS: Vehicle;
Length: 19.2" (488mm)
Width and weight vary with engine, exhaust, wheels and tires used in
the finished kit
Wheelbase: 12.89" (327.5mm)
Internal Gear Ratio: 3.38:1
Body;
Length: 15.6" (397mm)
Width: 7.75" (197mm)
Height: 3.7" (94mm)
