In The Box

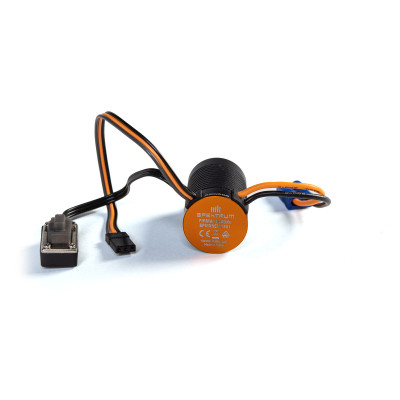

• (1) 4500Kv Sensored Brushless Motor

• (1) 8 Amp (40 Amp Burst) 1-2S Compatible ESC

• (1) Firma SCX24/AX24 Brushless Sensored Combo Instruction Manual

Introduction

The Spektrum™ Firma™ 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.

Features

• Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
• Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
• *Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)

• All included – includes motor, ESC, sensor wire and pinion gears

• Crawler Mode: Forward and instant reverse with drag brake

• 8 Amp (40 Amp Burst) 1-2S Compatible ESC

• Compact Size and Ready to Install

• JST PH 2.0 connector to fit the Dynamite 7.4V 350mAh 2S Lipo Battery



DROP-IN UPGRADE FOR AXIAL SCX24 & AX24 VEHICLES

The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.





ALL-INCLUDED

System includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.



Product Specifications

Outer Diameter	0.6" (15 mm)
Product Width	0.6" (15 mm)
Maximum Burst Current	40A
Maximum Continuous Current	8A
Motor Type	Brushless Sensored
Auto Cutoff	Yes
BEC Continous Current	0.3A
Low-Voltage Cutoff Programmable	No
Number of Poles	2
Output Connector	2mm Bullet
Overload Protection	Yes
Product Weight	10g ESC / 16g Motor
Water-Resistant	No
BEC	Yes
BEC Voltage	5V
Input Voltage	1 - 2S LiPo
Product Height	0.46" (12 mm)
RPM/Volt (Kv)	4500
Sensored	Yes
Forward	Yes
Reverse	Yes
Brakes	Integral with ESC
Programmable	No
Connector Type	PH 2.0 (High-Current Ultra Micro)
ESC Type	Brushless Sensored
Product Length	1.05" (27 mm)
