Features

Antenna Diversity
Auto-bind
Serial port supports SRXL or Remote/Satellite Receiver
Weighs only 3 grams
11ms speed with exceptional range and interference free operation
Works with most flight controllers including the Naze32, CC3D, SP F3 and more*
*Requires SRXL or Remote/Satellite connection

Overview

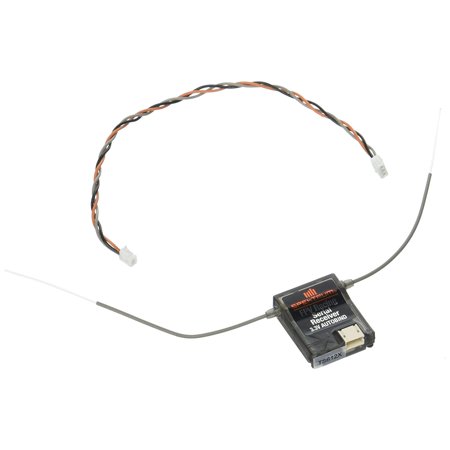

The Spektrum DSMX Quad Race receiver provides a high speed serial data connection with up to 20 channels. It's small and lightweight providing an excellent receiver for even the smallest of applications. It also features Auto-Bind so you no longer need to carry a separate receiver to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum DSMX Quad Race receiver provides unsurpassed range and interference free performance for quad racing.

Specifications

Type: Micro Serial Receiver
# of Channels: Up to 20
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 1.0 in (26mm)
Width: 0.8 in (21mm)
Height: 0.3 in (8mm)
Weight: 1.3 oz (3.6g)
Voltage Range: 3.3V
Antenna Length: 2.4 in (62mm)
