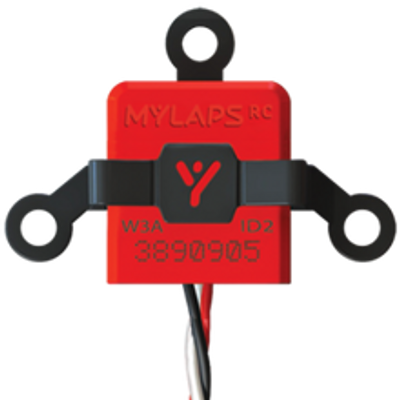

One of the big challenges in RC racing is getting your setup right. Our RC transponders help you to track lap times and give better insight in your performance. They also measure the connected voltage and ambient car temperature. The RC4 Hybrid transponder is compatible with older MYLAPS systems. It will provide you with a wide range of practice and race locations.

Max speed: 120 km/h (75 mph)

Temperature range: 0 - 50 °C (32 - 122 °F)

Dimensions: 16x19x6mm (0.7x0.8x 0.2 inch)

Weight incl. holder: 4.7 g

Operating voltage: 3.0 - 16 VDC

Humidity: Max. 90% relative

Signal transfer: Magnetic induction

Code resolution: 1.5 ms

Power: Feed from free receiver channel (ch3 or batt)

Connection plug: Connect using a standard Servo plug

Power consumption: 14mA @ 6 VDC

Wire insulation: PTFE / Teflon

Quick change holder: Yes

Connector: Generic receiver 3-pole

Compatible with: RC2, RC3 & RC4 Timing System
