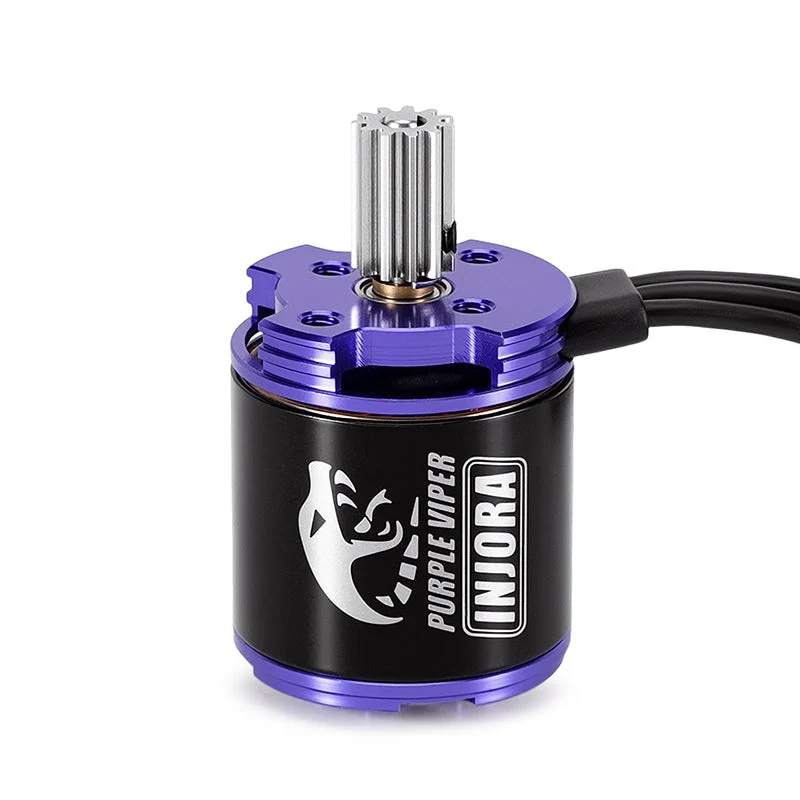

INJORA Purple Viper 1721 Brushless Motor for 1/18 TRX4M Ascent-18

INJORA Purple Viper 1721 Brushless Motor for 1/18 TRX4M Ascent-18

Compatibility:

• ESC: Compatible with INJORA MBL32 ESC, OR30 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
• Transmission: Compatible with 1/18 TRX4M, 1/18 Redcat Ascent18 transmissions, not compatible with 370 transmission.
• Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.

Note:

• Some noise at mid-throttle is normal for the 1721 motor due to its high-speed, open-rotor design. This does not indicate a defect.
• The 1721 Purple Viper is best for rigs under 700g. For heavier rigs, we recommend the 2204 Fat Viper for stronger drag brake performance.

Features:

• Smooth and linear at low speeds, powerful and aggressive at high speeds.
• Runs more quietly than brushed systems, producing virtually no noise.
• Includes a protective sleeve at the wire outlet for enhanced durability.

Motor Specifications：

• Model Number: 1721
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2800KV
• Motor Poles: 14
• Motor Slots: 12
• No-Load Current (11.1V): 0.7A
• Max Current: 20A
• Motor Connectors: PH2.0 3Pin
• Dimensions: 17.1*21mm
• Motor Output Shaft Diameter: Φ2mm
• Motor Pinion: 0.4mod 11T
• Weight: 18.7g
• Waterproof: Yes

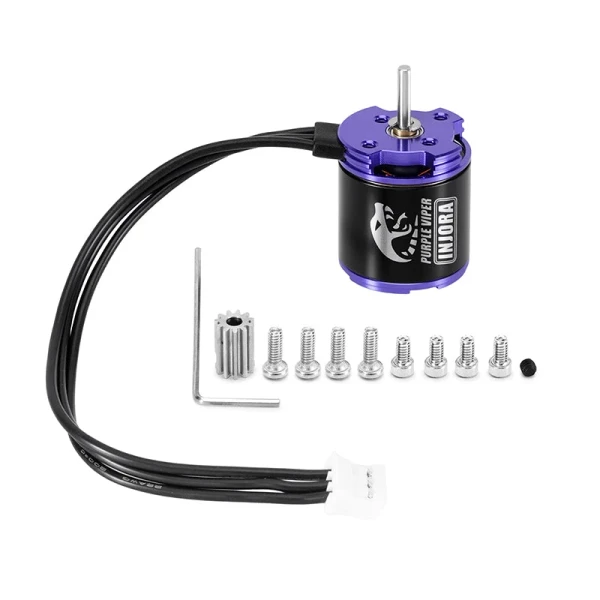

Package List:

• 1 * 1721 Brushless Motor
• 1 * Motor Pinion and Tool
• 1 * Motor Mount
