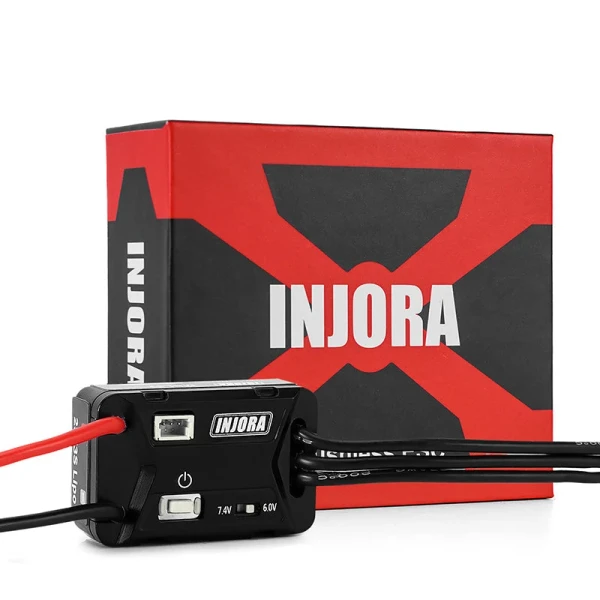

INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/24 1/18 RC Crawlers TRX4M Ascent18 SCX24

Compatibility:

• Radio system: Not compatible with the stock TRX4M / Ascent18 / SCX24 radio systems. A transmitter and receiver with a CH2 port are required.

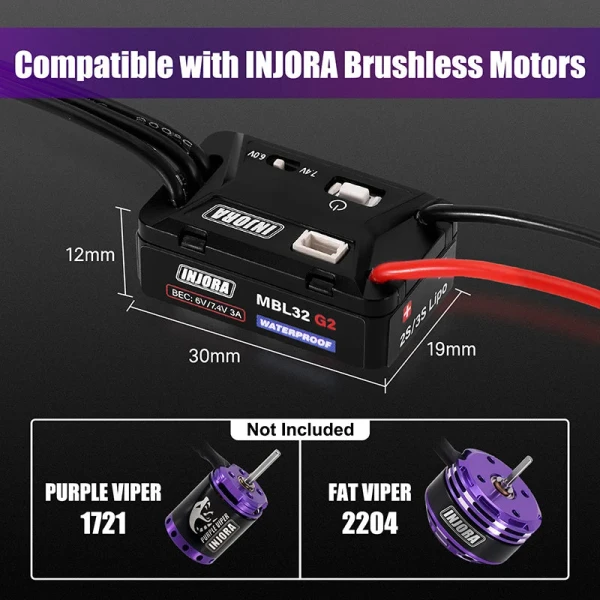

• Motor: Compatible with INJORA 1721 Purple Viper motors and 2204 Fat Viper motors

Features:

• The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.

• Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise

• MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V

• Waterproof Design for all-weather performance

• Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.

• Multiple Protections: Low-voltage, fail-safe, and rotor lock protection

Specifications:

• Part Number: MBL32 G2

• LiPo Cells: 2-3S

• Continuous Current: 25A

• Peak Current: 60A

• BEC Output: 6.0V/7.4V adjustable

• BEC Current: 3A

• Dimensions (L*W*H): 30*19*12mm

• Waterproof: Yes

• App Tuning: Not Supported

• Weight: 0.45oz (13g)

Package List:

• 1 * Micro Brushless ESC

• 1 * USB programmer Card

• 1 * Receiver Connector Cable

• 1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)

• 1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)

• 1 * Instruction Manual
