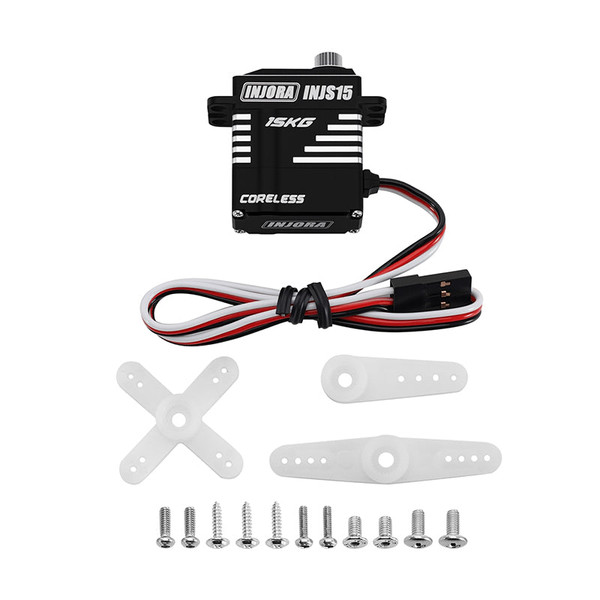

INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M

Note:

This servo is compatible only with the included servo mount and horn or the INJS11 servo mount and horn.

Not compatible with other servo mounts and horns.

Compatible with:

1/18 TRX4M Defender, Bronco, High Trail K10, High Trail F150

Features:

Waterproof Servo

CNC-machined aluminum case for strength and durability

Coreless motor provides fast response and stable output

Stainless steel gears for reliable long-term use

High torque output supports heavier micro crawler builds

Same size as INJS11, but with more torque — a great choice for heavier crawlers

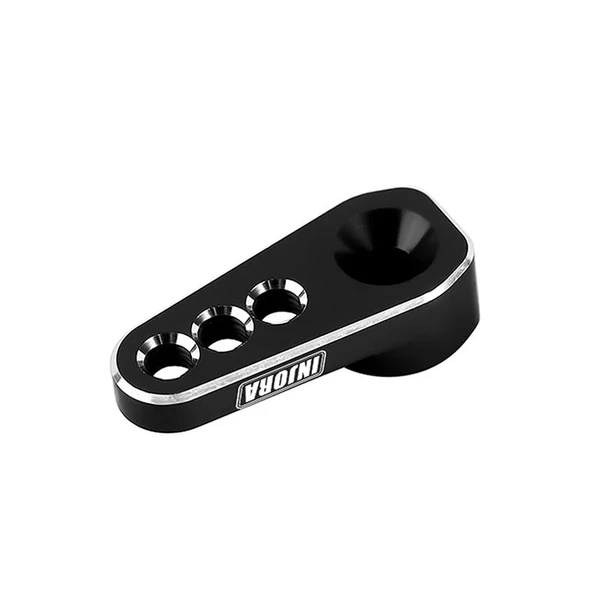

Includes aluminum servo mount and horn for TRX4M

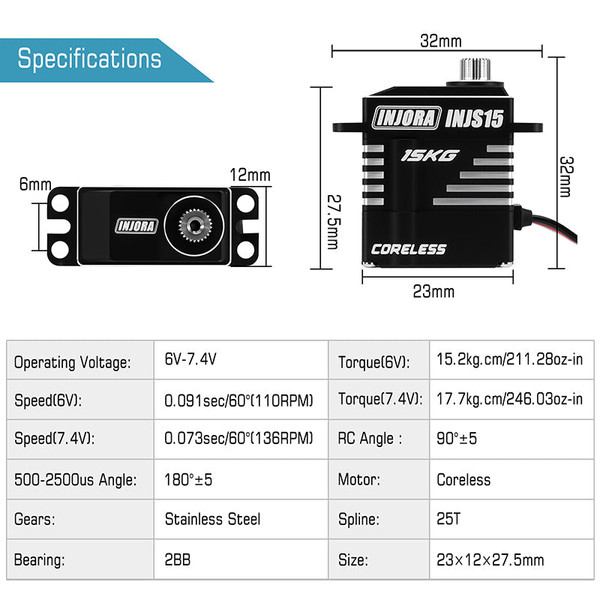

Specifications:

Part Number: INJS15

Operating Voltage: 6V-7.4V

Torque(6V): 15.2kg.cm/211.28oz.in

Speed(6V): 0.091sec/60° (110RPM)

Torque(7.4V): 17.7kg.cm/246.03oz.in

Speed(7.4V): 0.073sec/60° (136RPM)

RC Angle: 90°±5°

500-2500μs Angle: 180°±5°

Motor: Coreless

Gears: Stainless Steel

Spline: Φ4.9 Mini 25T

Bearing: 2BB

Lead Length: 250mm

Size: 23×12×27.5mm

Weight: 22g

Waterproof: Yes
