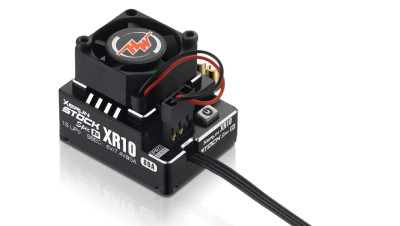

Hobbywing XR10 PRO Stock Spec ESC (1S)

1 reviews Write a Review
1.00 LBS
Calculated at Checkout

Hobbywing XR10 PRO Stock Spec ESC (1S)

  • Zero timing firmware for ROAR SPORTMAN races and other fair races.
  • World's Smallest footprint & Lightweight ESC ever. "23.5g"
  • Programming/Upgrading/ Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM.
  • Built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V for usage with high voltage servos.
  • Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
  • With HOBBYWING WIFI express module, users are able to program parameters, upgrade firmware and check relevant data during the event using either the iphone or Android devices.
  • New brakes and throttle functions: 100 levels of brag brake, 50 levels of initial brake force, 9 levels of maximum brake force, 20 levels of brake rate, and 30 levels of throttle rate. • Adjustable brake mode, PWM and brake frequencies and for different competitions and control feel.
  • Adjustable Turbo Timing & Boost Timing for different applications.
  • Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection).
  • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.

  XR10 Stock Spec 1S ESC Xerun STOCK Spec ESC
    30112751 30112400
Current Continuous: 80A
Burst: 380A
Continuous: 100A
Burst: 600A
Battery 3-4S NiMH
1S LiPo
4-9 cells NiMH/NiCd
2-3S* LiPo
Built-in BEC 6V/7.4V Adjustable,
Continuous Current of 3A (Switch-mode)
6V@3A (linear mode)
Motor Supported Sensored and sensorless brushless motors
Suitable Motor 3650 Motors
3650 Motors
2S LiPo: 1/10 Touring Cars≥4.5T, 1/10th Buggies≥6.5T
3S LiPo: 1/10 Touring Cars≥6.5T, 1/10th Buggies≥10.5T
Application STOCK class of 1/12 - /1/10 1/10,1/12 all competitions
1/10,1/8 rock crawler
Cooling Fan 5V - 7.4V
5V - 8.4V
Wires 14AWG-200mm 12AWG-200mm
Size 31.6 x 25.8 x 16.2mm 37.5x31.0x32.0mm
Weight** 23.5g** 32.6g
* For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan must be changed to 12V high voltage fan.  ** Weight is w/o wires, cooling fan
