Features

  • Input voltage range 2S-8S LiPo
  • Sensored, Sensorless and SmartSense™ running modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40mm fan
  • Waterproof design for all weather conditions
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
  • Data-logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
  • Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
  • Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
  • Easily tune and update ESC with USB and Bluetooth™ programming options.
    • Castle Link USB programming kit (coupon included with purchase)
    • Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
  • Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

Overview

CRYO-DRIVE™, Castle’s latest break-through technology, minimizes the amount of time the ESC’s electrical components spend generating heat. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm fan and a forged elliptical fin heatsink, the new design maximizes airflow through the system, taking thermal performance to a whole new level. The results are cooler ESC temperatures, increased runtime and more power handling.

Needed to Complete
  • A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
What's in the Box?

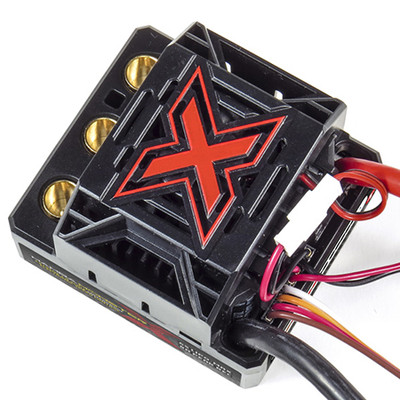

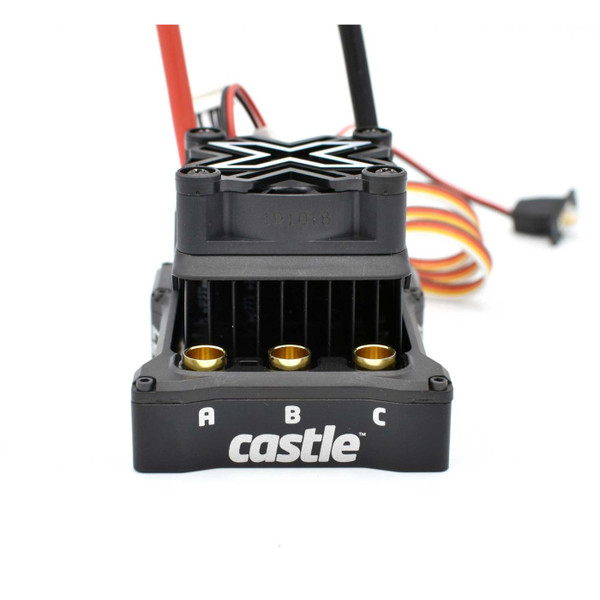

  • (1) 1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
  • (1) Product Manual
