CURRIE F9 PORTAL AXLES



CURRIE F9 PORTAL AXLES

CURRIE F9 PORTAL AXLES

The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio. Completely ball bearing driven, and metal gears throughout for durability.



HI-PINION GEARS

HI-PINION GEARS

The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.



Dig TRANSMISSION



Dig TRANSMISSION



Dig TRANSMISSION

DIG TRANSMISSION

The new transmission has a Dig function that offers the tightest turning radius on a production crawler in the industry. When needed, simply switch from 4WD to front-wheel-drive by locking the rear axle from your transmitter. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability.

NOTE: Dig functionality requires an additional micro servo, not included. Micro Dig Servo required, SPMSSX107 recommended (for Dig operation)



UNIVERSAL AXLE SET

UNIVERSAL AXLE SET

Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

  • Up to 45 degrees of steering
  • Smooth action for an efficient drivetrain
  • Compact yet durable design
  • Hardened steel construction



WB8 HD WILDBOAR™ DRIVESHAFTS

WB8 HD WILDBOAR™ DRIVESHAFTS

WB8 HD Wildboar™ front and rear driveshafts feature a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for greater strength. A center splined slider floats between each end and has added material to reduce flex and fatigue.



6MM STAINLESS STEEL LINKS

6MM STAINLESS STEEL LINKS

Strong 6mm stainless steel links with high grade plastic rod ends for durability. All links are metal including the steering.



STAINLESS STEEL PIVOT BALLS

STAINLESS STEEL PIVOT BALLS

All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.



SKIDPLATE WITH BOAT SIDES

SKIDPLATE WITH BOAT SIDES

The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.



STAINLESS STEEL STEERING LINKS

STAINLESS STEEL STEERING LINKS

The steering links are also made from 6mm stainless steel, offering precise steering and durability.

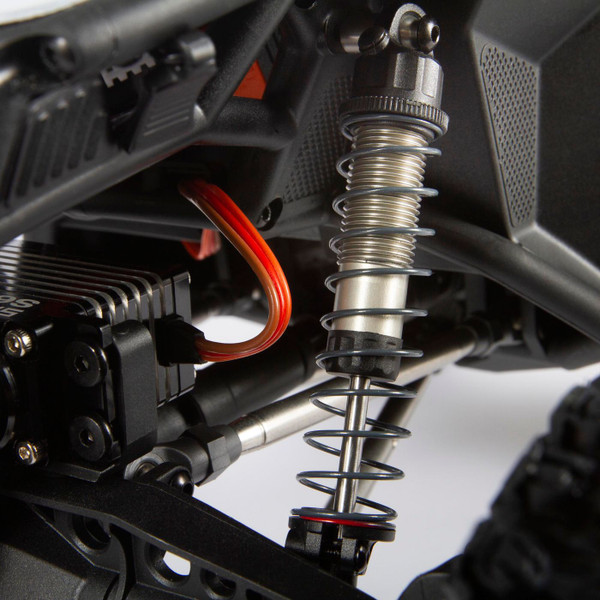

LARGE BORE ALUMINUM SHOCKS

LARGE BORE ALUMINUM SHOCKS

The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring. Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable so you can achieve the best dampening rate.



4-LINK SUSPENSION

4-LINK SUSPENSION

We've fine-tuned the suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.



A1.9, 3-PIECE BEADLOCK WHEELS

A1.9, 3-PIECE BEADLOCK WHEELS

For striking scale looks and serious trail performance, we've outfitted the Capra™ with officially licensed 3-piece Raceline Monster beadlock wheels.



LED LIGHT BAR

LED LIGHT BAR

A roof mounted LED light bar helps light the way on those late night crawls with your friends. Additional LED lights can be added to the front headlights (optional LED lights not included).



REALISTIC INTERIOR

REALISTIC INTERIOR

Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!



GRILLE AND HEADLIGHT BUCKETS

GRILLE AND HEADLIGHT BUCKETS

The molded plastic front grille features two clear plastic headlight lenses with light buckets (optional LED lights not included). Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.



ESC / RECEIVER TRAY

ESC / RECEIVER TRAY

Tucked under the front dash is a cage mounted ESC / receiver tray with integrated, adjustable cable routing to keep your wiring organized.



BATTERY TRAY

BATTERY TRAY

The battery tray is forward mounted, and located under the hood. The tray size is built for shorty packs, at a maximum size of 26mm x 98mm x 47mm.



HOOD RELEASE

HOOD RELEASE

Remove the clips hidden on the underside of the tube frame to raise the hood up and gain access to the battery tray.

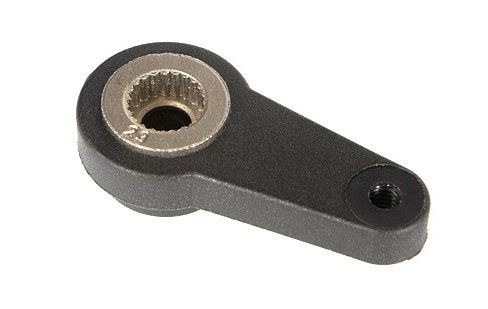

SERVO HORN WITH METAL INSERT

SERVO HORN WITH METAL INSERT

The servo horn features a 23T press fit metal insert for durability.



Capra™ 1.9 Unlimited Trail Buggy Builder's Kit
