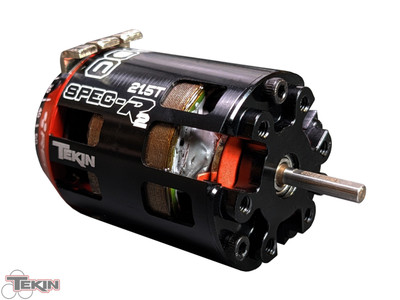

Tekin SPEC-R2 21.5T GEN4 ELITE Brushless Motor

No reviews yet Write a Review
$129.99
SKU:
TT2689E
UPC:
706893026850
Availability:
This product normally ships within 24hrs.
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Tekin SPEC-R2 21.5T GEN4 ELITE Brushless Motor

$129.99

ELITE - Includes TT2782 12.5mm SILVER rotor. Setup critical, SILVER rotors are a special extra strong material and can be damaged by excessive heat from over-gearing and over-timing.

Tekin’s SPEC-R2 brings next-level performance to SPEC racing classes. Improving on the original SPEC-R design, we revamped and refined the stator, rotor and materials used to increase both speed and torque while providing minimal fade during the late stages of the race. The SPEC-R2 is a hand-crafted, high-performance racing motor that is ready to hit the track right out of the box.

FEATURES

60 Degrees Adjustable Timing Advance
SPEC Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Sensored System Ready
Anodized Endbell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Legal in Major Governing Race Bodies
ROAR Approved

SPECS

Motor Turns

21.5T

Input Voltage

1S-3S LiPo/LiHV

4.2V-13.05V

Design

2-pole 3-slot

Weight

5.27oz

149.5g

Shaft Size

3.18mm

1/8in

Motor Length

50.25mm

1.987in

Motor Diameter

35.85mm

1.40in

Bearing Dimensions

Front 4 x 13 x 5mm

Rear 1/8 x 3/8 x 5/32in

Rotor Size

TT2782 12.5mm SILVER

Max Operating Temperature

180F

82C

Max RPM

100,000

Mounting Pattern

M3 @ 25.4mm

M3 @ 1.0in

Rebuildable

YES
