Features
Never Settle For Second Place

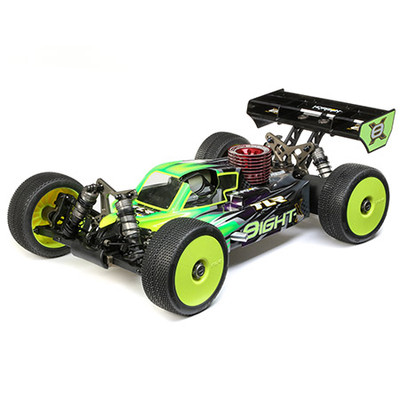

The original 8IGHT-X ushered in a new era of TLR® 1/8 scale buggies. The Team Losi Racing® 8IGHT-X/E 2.0 Race Kit takes everything we've learned and applied it to this new platform with incredible attention to detail to make this the fastest and easiest to drive TLR 1/8 buggy yet. With the 8IGHT-X/E 2.0, drivers achieve the next level of performance, drivability, and speed. This Team Losi Racing Race Kit has updated everything that made it a regular on the podium including the drivetrain, suspension geometry, and chassis layout. The 8IGHT-X/E 2.0 can be driven harder and with more pace and is a fantastic vehicle right out of the box for all levels of consumers. It includes all the desired factory team option parts and uses common metric hardware for worldwide appeal. Plus, it includes the parts needed to build the vehicle either as Nitro or Electric in a one-box purchase. Team Losi Racing is always pursuing excellence, the 8IGHT-X/E 2.0 Race Kit is the one to beat with features and performance destined for podium greatness.
Nitro and Electric Ready
All of the parts needed to run either nitro or electric are included in one box.
Rear Adjustable Hubs
The rear hubs on the 8IGHT-X/E 2.0 have an updated pin location as well as are now height adjustable in more increments for fine-tuning and maximum rear grip
Square Insert Pills and Narrower Rear Pivots
All pivot mounts have been updated to use square pills to offer more tunability. The rear pivots are now narrowed to improve the front to rear roll of the car and provide more rear grip in all situations and better-balanced front to rear.
7075 3mm Aluminum Chassis
The chassis is new to the 8IGHT-X/E 2.0 and is made from 7075 3mm thick aluminum and hard anodized for the best wear possible. The chassis is also milled out deeper to allow for more flex and the lightest 1/8 chassis to date.
Center Diff Setup
The center diff mount is a new molded composite piece offering more rigidity and the new integrated mount for the throttle servo is lighter. The E buggy side will be handled using an updated center diff setup from the 8XT.
Brake Setup
The brake cams have been updated and the brakes are now freer and provide better and more consistent braking force and feel.

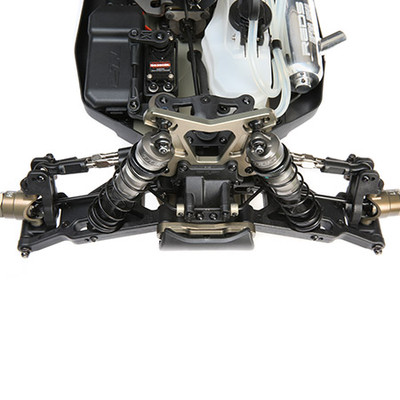

Front and Rear Shock Tower
The rear shock tower works with the new rear gearbox and pivots. The front shock tower is shorter to decrease the front chassis roll as well as lower the CG. Both have been lightened, new camber link mounting positions, as well as shock mounting positions to provide the tunability and durability racers, are looking for.
Better Diff Access
The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle. The rear diff case has been updated to allow for the new C and D pivot blocks.
Cab-Forward Style Body
A cab-forward design helps with overall downforce, which improves steering and overall stability. The body comes precut for ease of mounting.
Front Spindles
The 8IGHT-X/E 2.0 spindles have been updated to use 3mm screws for the steering arm for increased reliability.
Front and Rear Universals
The 8IGHT-X/E 2.0 includes universals for the front and rear which are shorter and lighter which makes the car smoother in existing turns and aids in the flow in bumpy track conditions.
Aluminum Wheel Hexes
The wheel hexes in the 8IGHT-X/E 2.0 have been optimized for use with this updated platform. They are hard-anodized aluminum for durability and weight savings.
Radio Tray
The steering servo has been moved in and forward to provide a better balance to the car. For the E version, the updated steering servo mount has an integrated ESC mount to get the ESC forward in the car.
Steering Rack
The steering rack allows more Ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads. Also, the rear mounting points moved in and back allowing the drag link to sway back for a more linear steering feel.
Wing Mount
8IGHT-X/E 2.0 uses the wing mount from the 8IGHT-X Truggy that offers different heights and positions for ultimate traction control.
Optimized Shocks
The 8IGHT-X shocks are optimized and lightened to decrease the center of gravity and lower the weight of the car and will include 3.5mm shock shafts. The shock pistons have been altered to allow more blow-by to aid in bump handling.
Insert/Truss Suspension Arms
Long front and rear arms provide great bump handling and stability. The arms are stronger using a truss-style base as well as upper stiffener plates to adjust flex for full tuning abilities. Bushings are used for the inner hinge pin area to provide a worry-free, smooth function at all times.
Gear Differential
All three gear differentials now include V2 HD diff cases with composite pin holders, V2 O rings, lightened sun gears, and F/R high traction outdrives. Which provides more grip and a consistent feel throughout the entire run along with quicker acceleration and longer run times.
Suspension Geometry
The 8IGHT-X/E 2.0 next-generation suspension geometry has further been updated making a car that is fast, nimble, and even easier to drive. This includes a myriad of updates including, a wider front pivot with less scrub radius, narrower rear pivot, and updated hub offset, longer suspension arms, and more suspension mounting locations.
Adjustable Caster Blocks
17.5 deg caster blocks are included that allow the height of the spindle to be adjusted up and down for high-speed stability.
Sway Bar System
The sway bar system has collars that eliminate side to side play to provide a more consistent suspension package.
Chassis Side Guards
The chassis side guards have been updated to allow for more room as well as moved back 3mm to provide for tire expansion. The E-Buggy side now has the battery tray molded into the side guard for a lower center of gravity and lighter weight.
Bleeder Shock Caps
Machined aluminum shock caps with threaded bleeder holes for easy and consistent bleeding of oil. Bladders and Emulsion seals are included for tuning to your track conditions and driving style.
Specifications:
Approximate Assembly Time - 3-5 Hours
Ball Bearings - Full Set
Battery - Sold Separately
Body - 8X/E 2.0 Unpainted
Brakes - Semi-Metallic Pad with Steel Disc
Charger - Sold Separately
Chassis - 3mm, 7075 T-6 Aluminum, Hard Anodized
Completion Level - Kit
Differential - Sealed viscous filled gear differential
Drivetrain - 4WD
Final Drive Ratio - 11.68:1
Front Track - 12.1 in (308mm)
Fuel Tank Capacity - 125CC (4.2oz) - Nitro Only
Gear Pitch - MOD1
Ground Clearance - 1.1 in (27mm)
Internal Gear Ratio - 3.23:1
Pinion - 13T
Power Type - Electric/Glow
Product Height - 6.69" (170 mm)
Product Length - 18.9" (480 mm)
Product Weight - Varies on equipment used
Product Width - 12.1" (307 mm)
Radio - Sold Separately
Rear Track - 12.0 in (306mm)
Receiver - Sold Separately
Scale - 1/8
Servos - Sold Separately
Shock Type - Aluminum Oil Filled
Speed Control - Sold Separately
Spur Gear - 47T
Suspension - Independent
Wheel Hex Size - 17mm
Wheel Width - 1.7" (42mm)
Wheelbase - 12.7" (323 mm)
