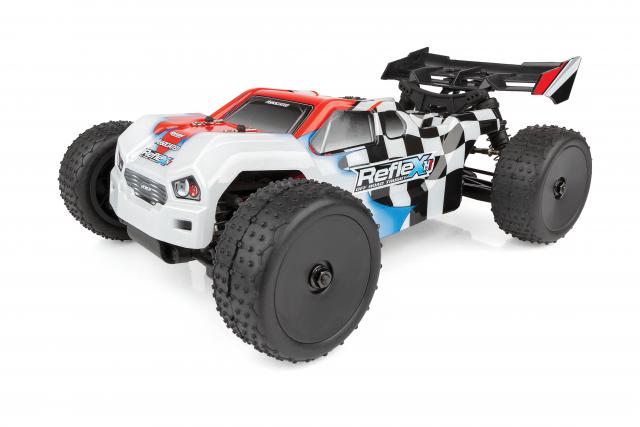

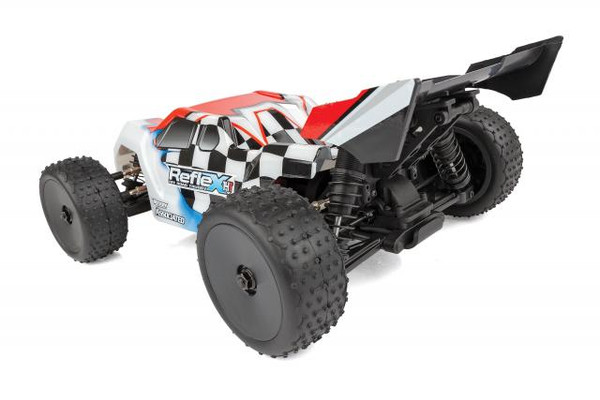

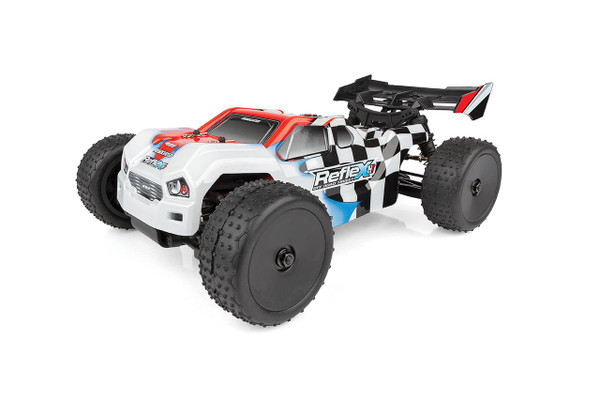

Team Associated's 1:14 scale REFLEX 14T 4WD electric truggy comes out of the box already assembled, with a Reedy Power brushless speed control, brushless motor, high-torque digital steering servo, and 2.4GHz radio system. With all that power at your disposal, the truggy's design effortlessly channels it into 4WD fun! The adjustability offered by the turnbuckles, caster blocks, and rear hubs make the REFLEX 14T ready for any terrain you can run on. Additional features include three sealed differentials, aluminum steering rack, and lightweight aluminum center driveshaft. Adding a battery pack of your choice to the REFLEX 14T RTR, you can now have big performance in a small-scale Ready-to-Run package! Think small. Win big.
The #20176C REFLEX 14T Truggy RTR Combo has the added benefit of a Reedy 123-S Compact Balance Charger and Reedy LiPo battery pack included!
Comparison Chart
MODEL VERSION | ELECTRONICS INCLUDED |
Part # | Name | Motor | Radio, Servo, ESC, Receiver | Charger | Battery |
#20176 |
REFLEX 14T Truggy RTR |
brushless |
included |
none |
none |
#20176C |
REFLEX 14T Truggy RTR Combo |
brushless |
included |
Compact Balance Charger |
LiPo |
This vehicle needs extra parts to make it operational. Click on the Specifications tab above to see what extra equipment you'll need to make the vehicle operational, such as motor and battery pack. Due to ongoing R&D, photos may not match final vehicle. Vehicle shown on these pages equipped with item NOT included in vehicle: 2S LiPo battery.
Features

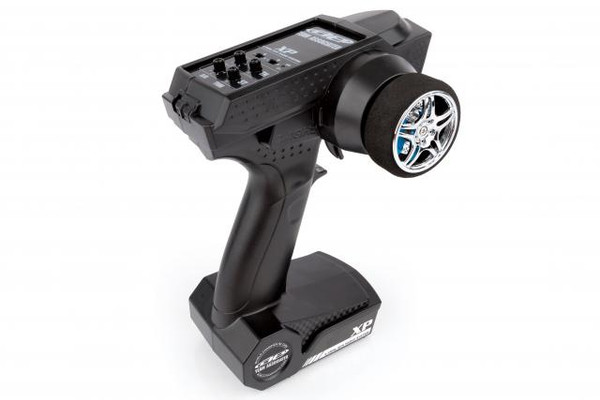

- 2.4GHz 2-channel radio system
- High-Torque Digital Servo with spring-style servo saver
- Powerful Reedy 4500kV Brushless Motor
- Water-resistant, high-power, Reedy brushless speed control with T-plug connector
- Three sealed differentials
- Threaded, coil-over shock absorbers
- Adjustable turnbuckles
- Adjustable inserts for caster blocks and rear hubs
- Aluminum steering rack
- Front universal driveshafts
- Sleek and stylish race-inspired body
Vehicle Specifications
Power Source: |
Electric |
Terrain: |
Off-Road |
Body Style: |
Truck |
Scale Size: |
1:14 Scale |
Assembly Level: |
Ready-To-Run* |
Length: |
304mm (11.97in) |
Width: |
202mm (7.95in) |
Wheelbase: |
varies |
Weight: |
varies |
Internal Gear Ratio: |
2.46:1 |
Drive: |
4WD |
* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.
Required to Complete
- #20176: 2S LiPo battery with T-Plug connector fitting 100x30x20mm space (#27331 Reedy Wolfpack LiPo 1600mAh 30C 7.4V)
- #20176: Suitable battery charger (#616 Reedy 423-S Compact Balance Charger)
- #20176, 20176C: Four (4) AA batteries (#302 Reedy AA Alkaline Batteries)
