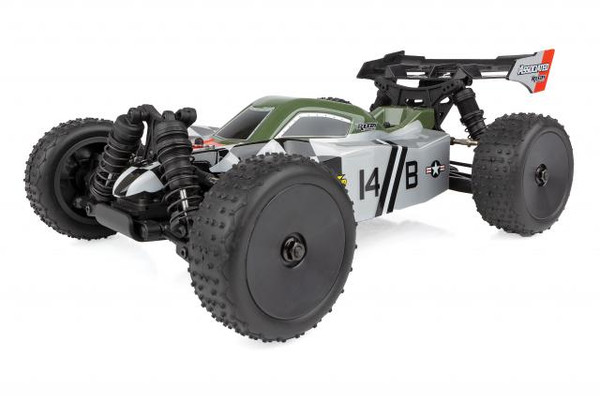

Team Associated Reflex 14B RTR 1/14 Scale 4WD Buggy

No reviews yet

$179.99

SKU:: ASC20175
UPC:: 784695201750
Availability:: Usually ships in 24 hours
Weight:: 3.25 LBS
Shipping:: Calculated at Checkout

Team Associated Reflex 14B RTR 1/14 Scale 4WD Buggy

$179.99

Description
Parts
Upgrades
Completion Parts
Product Manuals

Description

Team Associated's 1:14 scale REFLEX 14B 4WD electric buggy comes out of the box already assembled, with a Reedy Power brushless speed control and motor, high-torque digital steering servo, and 2.4GHz radio system. With all that power at your disposal, the buggy's design effortlessly channels it into 4WD fun! The adjustability offered by the turnbuckles, caster blocks, and rear hubs make the REFLEX 14B ready for any terrain you can throw at it. Additional features include three sealed differentials, aluminum steering rack, and lightweight aluminum center driveshaft. Adding a battery pack of your choice to the REFLEX 14B RTR, you can now have big performance in a small-scale Ready-to-Run package!

The #20175C REFLEX 14B Buggy RTR Combo has the added benefit of a Reedy 123-S Compact Balance Charger and Reedy LiPo battery pack included!

Comparison Chart

MODEL VERSION		ELECTRONICS INCLUDED
Part #	Name	Motor	Radio, Servo, ESC, Receiver	Charger	Battery
#20175	REFLEX 14B Buggy RTR	brushless	included	none	none
#20175C	REFLEX 1B Buggy RTR Combo	brushless	included	Compact Balance Charger	LiPo

This vehicle needs extra parts to make it operational. Click on the Specifications tab above to see what extra equipment you'll need to make the vehicle operational, such as motor and battery pack. Due to ongoing R&D, photos may not match final vehicle. Vehicle shown on these pages equipped with item NOT included in vehicle: 2S LiPo battery.

Features

2.4GHz 2-channel radio system
High-Torque Digital Servo with spring-style servo saver

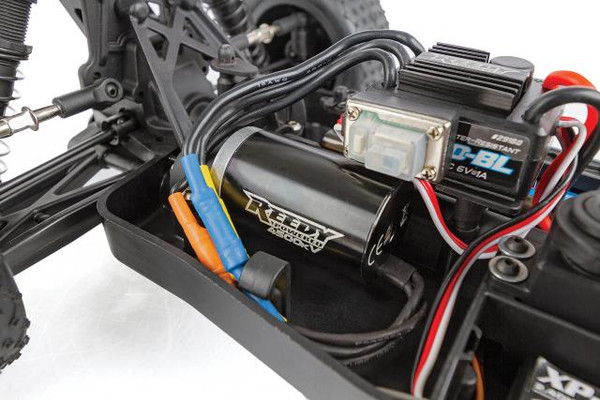

Powerful Reedy 4500kV Brushless Motor
Water-resistant high-power Reedy brushless speed control with T-plug connector
Three sealed differentials

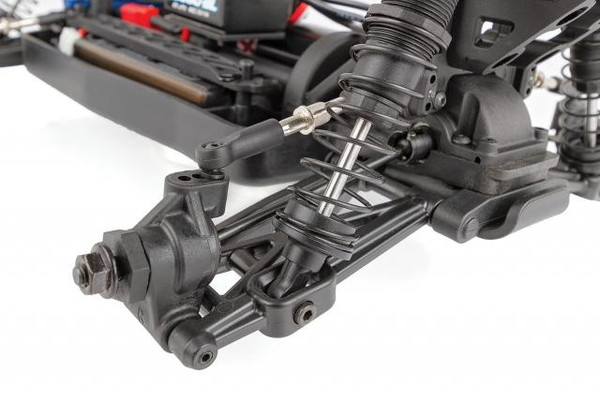

Threaded, coil-over shock absorbers
Adjustable turnbuckles
Adjustable inserts for caster blocks and rear hubs
Aluminum steering rack
Front universal driveshafts
Sleek and stylish race-inspired body
Molded tub chassis with covered center driveshaft
Aluminum center driveshaft
12mm drive hex

Vehicle Specifications

Power Source:	Electric
Terrain:	Off-Road
Body Style:	Buggy
Scale Size:	1:14 Scale
Assembly Level:	Assembled*
Length:	304mm (11.97in)
Width:	202mm (7.95in)
Wheelbase:	varies
Weight:	varies
Internal Gear Ratio:	2.46:1
Drive:	4WD

* This vehicle comes assembled, but some additional items such as electronics and/or an engine/motor may be required.

Required to Complete

#20175: 2S LiPo battery with T-Plug connector fitting 100x30x20mm space (#27331 Reedy Wolfpack LiPo 1600mAh 30C 7.4V)
#20175: Suitable battery charger (#616 Reedy 423-S Compact Balance Charger)
#20175, 20175C: Four (4) AA batteries (#302 Reedy AA Alkaline Batteries)
