Features
- Recognizes unique Smart battery data for safe, easy charging
- Can also be used to charge batteries without Smart technology
- 50 watts of charging power, up to 5 amps of charge current
- Compact, easily portable design
- One-button interface and simple to understand charging indicator
- Adaptable for AC power input (includes AC to 20V DC power supply)
- Quiet internal cooling fan maintains a safe, efficient operating temperature
- Supports charging LiPo, Lilon, LiHV, and NiMH battery types
- Accepts future Smart technology updates
Overview
With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.
When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery's integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.
Needed to Complete
- Nothing! The Spektrum™ S150 is usable with your Smart batteries, as well as regular, compatible batteries, right out of the box.
What's in the Box?

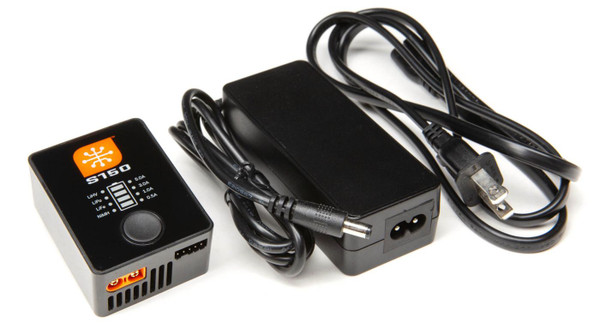

- (1) Spektrum™ S150 AC Mini Smart Charger
- (1) AC to 20V DC 3 Amp Power Supply
- (1) Product Manual
Specifications
- Application - Battery Charger for Electric Powered RC Vehicles and Aircraft
- Battery Balance Connector - JST-XH
- Battery Temperature Monitoring - Yes, Temperature Sensor Included
- Battery Type - 1-4S LiPo, LiFe, LiHv / 1-12C NiMH, NiCd, , LiFe (3.3V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell)
- Circuit Breaker - Yes
- Cooling Method - Fan
- Display - 2.4" 320x320 IPS LCD
- Height - 1.12" (28.5mm)
- Input Voltage - 100-240V AC
- Integrated Balancing - Y - Internal Balancer & External Adapter
- Length - 2.5" (65mm)
- Low Input Voltage Protection - Yes
- Material - Plastic Case
- Maximum Charge Rate - 17.4V, 5A, 50W
- Model Memory - Smart ID
- Output Connector - IC3 (compatible with EC3)
- Over Current Protection - Yes
- PC Connectivity - Yes - USB, external adapter required
- PC Required - No
- Peak Detection - Yes
- Reverse Polarity Protection - Yes
- Safety Timer - Yes
- Selectable Charge Rate - Yes - Incremental (0.1A Increments)
- Short Circuit Protection - Yes
- Software Updates - Yes, via USB Port
- Thermal Protection - Yes
- Type - AC Powered Smart Battery Charger
- Weight - 2.2oz (63g)
- Width - 1.9" (49mm)
