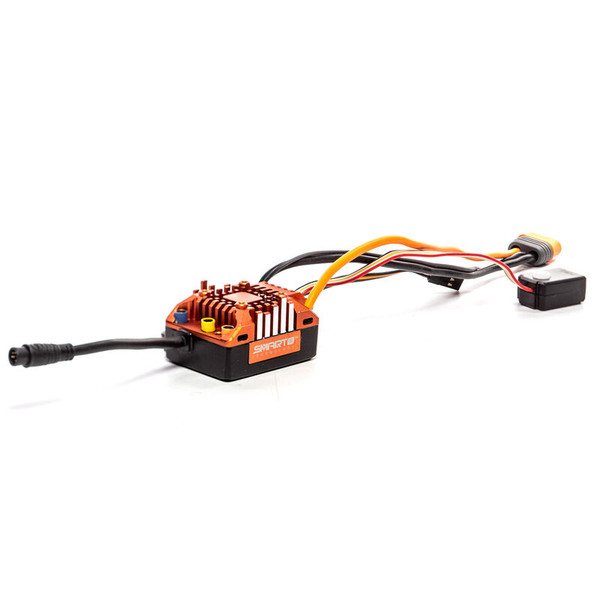

Spektrum Firma 60A Sensored BL Smart Crawler ESC

No reviews yet Write a Review
$245.99
$199.99
$159.99
(You save $86.00
SKU:
SPMXSE1060
UPC:
605482725610
Availability:
This Item Usually Ships Within 24 Hours
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Spektrum Firma 60A Sensored BL Smart Crawler ESC

$245.99
$199.99
$159.99
(You save $86.00

Beach RC says....

Product Details

The Spektrum Firma Sensored Smart ESC is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.

Key Features
  • Smart all-in-one telemetry
  • Waterproof ESC
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

In The Box
  • (1) Spektrum Firma 60A Sensored Brushless Crawler ESC
  • (1) Sticker Sheet and Mounting Tape
  • (1) Optional ESC Fan
  • (1) Product Manual

Needed to Complete
  • Spektrum™ Surface Receiver
  • Spektrum Firma Sensored Brushless Crawler Motor
  • 2S or 3S Lipo Battery with EC3 or IC3 Connector
  • Spektrum Transmitter
  • Introduction

    The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.

    Features

    • Smart all-in-one telemetry
    • Fast, powerful 32-bit ARM M4 processor
    • Multiple options for easy programming:
      • Smart ESC Programming Box (V2 version required)
      • SmartLink USB Updating and Programmer application
      • Programming from Transmitter via Text Gen Telemetry
    • Multi-point protection:
      • Over-current protection
      • Automatic LiPo low-voltage cutoff
      • Thermal protection
      • Failsafe protection
    • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
    • Compact for easy installation in most applications
    • Ready to install — no soldering required
    • Waterproof ESC
    • Waterproof sensor wire with locking plug and gasket
    • Aluminum heat sink for high efficiency
    • Includes Optional Cooling fan
    • Adjustable high-power BEC (6V or 7.4V)
    • Firmware updatable through the Smart ESC Programming Box (V2 version required)
    • High heat-resistant IC connectors, backwards compatible with EC connectors
    • Limited 1-year warranty

    Overview

    Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

    Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

    With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

    Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

    ADVANCED SENSORED MOTOR CONTROL
    ADVANCED SENSORED MOTOR CONTROL

    The Spektrum Firma Smart Crawler System features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving, rock crawling competitions and rock racing setups. This advancement in sensored motor control allows the ESC to match your throttle input to the motors RPM with unmatched precision.



    INTELLIGENT SPEED AND TORQUE CONTROL
    INTELLIGENT SPEED AND TORQUE CONTROL

    The Spektrum Firma Smart Crawler System provides a closed loop control, ensuring that the esc maintains torque and RPM levels even as driving conditions change. Giving unprecedented control when driving uphill or downhill and even when in wet or loose traction conditions. No matter the terrain, the Spektrum Firma Crawler system keeps you in complete control.



    MAXIMUM POWER EFFICIENCY PROVIDES LONGER BATTERY LIFE
    MAXIMUM POWER EFFICIENCY PROVIDES LONGER BATTERY LIFE

    When driving with the Firma Smart Crawler System, drivers are better equipped for the long trails ahead. The Spektrum Firma Smart Crawler System only uses the power it needs to match your desired throttle output, providing substantially more efficient current levels and extremely long battery life when compared with similar sensorless systems.



    PRO-LEVEL DRAG BRAKE ADJUSTMENT
    PRO-LEVEL DRAG BRAKE ADJUSTMENT

    The Spektrum Firma Smart Crawler System features a huge range of drag brake adjustability, allowing for drivers to expertly tune their crawlers and scalers depending on their driven train and vehicle weight. Allowing up to 200% drag power, no matter the setup, the Spektrum Firma Smart Crawler System can keep your vehicle parked at nearly any incline.



    WATERPROOF
    WATERPROOF

    The all-weather, waterproof design of Spektrum Firma Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



    ONE-WIRE TELEMETRY
    ONE-WIRE TELEMETRY

    No need to connect multiple wires, sensors, modules, and links. With Firma ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

    *See compatibility chart for more information.



    SMART TECHNOLOGY BATTERY DATA
    SMART TECHNOLOGY BATTERY DATA

    When used with a Spektrum Smart LiPo battery, your Firma ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!



    MULTIPLE PROGRAMMING OPTIONS
    MULTIPLE PROGRAMMING OPTIONS

    Multiple programming options are available. Using the Smart Firma ESC Programming Box (version V2 required), you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!



    Product Specifications

    Specs

    BEC Yes
    BEC Continous Current 3A
    BEC Type Switchable
    BEC Voltage 6V/7.4V
    Brakes Adjustable drag brake force
    Connector Type IC3
    Forward Yes
    Low-Voltage Cutoff Programmable Yes
    Maximum Burst Current 360A
    Maximum Continuous Current 60A
    Motor Limit Only Spektrum sensorless motors
    Overload Protection Yes
    Product Height 0.96" (24 mm)
    Product Length 1.9" (48 mm)
    Product Weight 2.89oz (82g)
    Product Width 1.4" (36 mm)
    Programmable Yes
    Reverse Yes
    Search Keywords SPMX_ESC_SURFACE
    Technology Smart
    Water-Resistant Yes
