The Ultimate Off-Road Ride Height & Drop Gauge

JConcepts Floating Ride-Height and Droop Gauge delivers unmatched accuracy and versatility. Engineered for racers who demand consistency, this high-quality aluminum tool offers effortless ride height and droop measurements with a unique floating design for quick and precise adjustments!

About the Ride-Height & Droop Gauge

Innovative Design

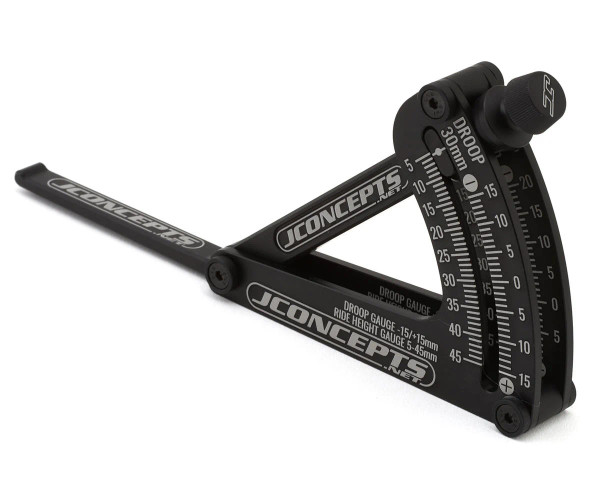

The JConcepts Floating Ride-Height & Droop Gauge is a precision-engineered tool designed to provide racers with accurate and consistent chassis setup measurements for various off-road vehicles. Crafted from high-quality aluminum, this durable and versatile gauge offers a robust construction with a refined color treatment for easy identification. It features an advanced floating design that allows for quick and precise measurements by simply sliding it under the chassis, ensuring effortless ride height adjustments from 5mm to 45mm and droop measurements ranging from -20mm to +9mm. The reversible plates are laser-etched for clarity and optimized to work seamlessly with both 30mm and 36mm droop blocks, allowing users to fine-tune their setup based on their specific vehicle scale and height block preference.

A standout feature is its dual functionality—acting as both a droop gauge and a ride height gauge, enabling racers to optimize their suspension geometry with minimal effort. For even greater precision, the gauge incorporates a thumb wheel that locks in a chosen height, eliminating inconsistencies in measurements. When paired with the JConcepts #5019 droop blocks and #2103 setting board, this gauge becomes an indispensable asset for competitive racers looking to dial in their suspension with absolute confidence. With its engraved logos for authenticity and measurements that accommodate a wide range of vehicles, the JConcepts Floating Ride-Height & Droop Gauge stands out as a must-have tuning tool for serious enthusiasts seeking professional-level accuracy in their setups.

Features:

• Durable aluminum build strong and lightweight for long-lasting use
• Dual functionality measures both ride height and droop
• Wide measurement range ride height from 5mm to 45mm, droop from -20mm to +9mm
• Floating design allows quick and easy height checks
• Thumb wheel lock locks measurements for accuracy
• Reversible plates works with 30mm and 36mm droop blocks
• Laser-etched markings clear and easy-to-read measurements
• Compatible with JConcepts setup tools works best with #5019 droop blocks and #2103 setting board
• Engraved logos branded for authenticity and professional appeal

Includes:
(1) Floating Ride-Height & Droop Gauge

Specifications:
Ride Height Adjustments 5 to 45mm
Droop Measurements -20 to +9mm
Application 1/10 & 1/8 Off-Road
