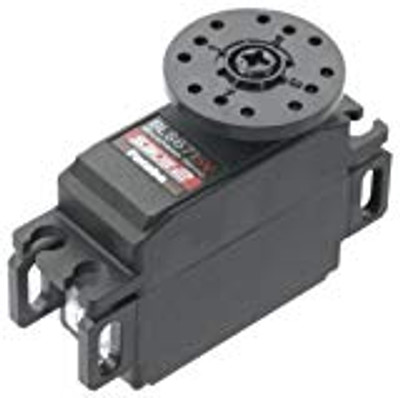

This is the Futaba BLS571SV High Voltage Programmable Servo
for Electric and Glow Powered Cars.

FEATURES:

• Brushless motor
• Futaba S.BUS2 system can be connected to a PC using the CIU-2 USB adapter PC Interface (not included sold separately) to change various operating characteristics
• One year limited warranty through Futaba Service Center beginning at date of purchase

INCLUDES:
Futaba BLS571SV Servo with Wire Lead, Connector, 1.7" (44mm) T-shaped Horn, two Rubber Dampers, four Eyelets, 3x8mm Horn Mounting Screw and Instruction Sheet.

SPECS:
6.0V 7.4V
Speed: 0.10 @ 60° 0.08 @ 60°
Torque: 130.6 oz/in (9.4 kg/cm) 152.8 oz/in (11.0 kg/cm)
Rated Voltage: 6.0- 7.4V DC
Operating Voltage: 4.0 - 8.4V DC
Dimensions: 1.59 x 0.79 x 1.00" (40.5 x 20 x 25.4mm)
Weight: 1.45oz (41g)

SBus Programmable Defaults
Dead Band Degree: 0.25
Damper Factor: 96
Stretcher Gain: 2
Boost: 5
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Free
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off

COMMENTS: For full performance, a 2.4GHz surface radio system is recommended.
