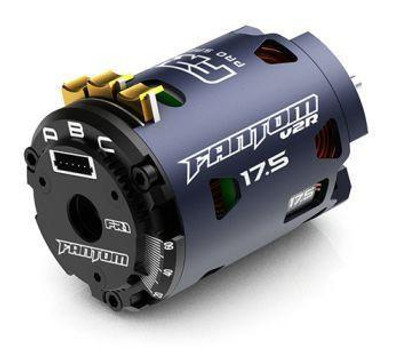

NEW v2 FR-1 TEAM WORKS MOTOR - 21.5 Turn (image is representative of the motor design, but not the wind of the motor)

The BEST Just Got BETTER!!

Developed and tested in the USA, we are proud to announce the all new Fantom v2R and v2T FR-1 Series professional racing motors!

The heart of the new v2 FR-1 Series motors are the high quality stators and rotors. Our stators are made from premium Kawaski steel from Japan. The new improved internal design provides even lower ohm resistance, while at the same time provides more POWER and RPM! In addition, our rotors are manufactured using a premium grade neodymium formula, for extreme horsepower and superior fade resistance! All rotors are laser etched with the Fantom logo and specs!

Why settle for just an all purpose motor when you can have a motor designed to fit your exact application! Whether you race On-Road or Off-Road, 1S or 2S....We got you covered!! Feel the Fantom....Feel the Power!!

All FR-1 motors are built up to a standard, not down to a price. If your race program demands the best, demand an FR-1!

MORE POWER TO THE PEOPLE!

SPECS and FEATURES:

Designed in the USA
Meets ALL ROAR, BRCA, IFMAR, EFRA Specifications
ROAR APPROVED
All spec stators are professionally hand-wound by an expert winder, selected by us to only wind our stators. This ensures that our stators are wound with the highest consistency from stator to stator, lowest resistance and highest quality winding, for every motor and stator we sell.
Newly Designed Stators for Ultra Low Stator Ohm Resistance...Equals more Torque & RPM with less Fade
Newly Designed Sleeve and End-Plate for Ultimate Ventilation and Cooling
Newly Designed High-Power / Low-Resistance, Thick Copper, Gold Plated Solder Tabs and Collector Ring
Built with 12.5mm High-Torque Rotor - Pro Select (1550-1629)
Precision Balanced Rotor
Premium Grade Neodymium Magnet Formula produces extreme horsepower and superior fade resistance
Premium Grade Kawasaki® Steel Stator Plates
Maximum Size Allowed by ROAR, Pure Copper, High-Temperature Wire
CNC Machined Billet 7075 T6 Aluminum End Plates for Precision Bearing Alignment
Sensored or Sensorless Operation - Compatible with all popular racing speed controls
Inspection "window" on side of can, for easy tech inspection
Infinite Adjustable Timing
High RPM Precision Bearings
Includes 180mm sensor cable
Available Spec Winds: 10.5, 13.5, 17.5, 21.5, 25.5
Also available as a Team Works and Team Works Plus
YOU ARE VIEWING THE TEAM WORKS VERSION OF THIS MOTOR, WHICH INCLUDES THE FOLLOWING...

Professionally built to our strict standards, which includes the rotor properly shimmed, complete evaluation of the coils, rotor strength and assymmetry and sensor board deviation. The timing is also set to our recommended setting for your application or you can choose a custom setting.
This is our premium motor, built with all available options, except the aluminum upgrade parts. Team Works motors include all of the Team motor options, plus we add re-shimming the rotor with Teflon shims, the highest grade ABEC 7 hybrid ceramic bearings and all test results are printed and included.
Choose from 4 different rotor options! Select from the drop-down boxes below.
If you choose either the 12.3mm or 12.4mm rotor option, you will also receive the stock 12.5mm high-torque Pro Select rotor with your order.
All Team Works motors are guaranteed to meet our strict specifications.
THIS TEAM WORKS MOTOR INCLUDES ALL OF THE OPTIONS LISTED BELOW. IT ALSO INCLUDES THE ORIGINAL STOCK BEARINGS AS SPARE PARTS.

TEAM WORKS SERVICE & UPGRADE DETAILS:

Rotor Re-Shim w/ TEFLON® Shims - We adjust the rotor shims so that the rotor "floats" centered properly within the magnetic field. We use TEFLON® shims for the outermost shims, to minimize any side-load binding between the rotor and bearings. If required, the rotor shaft is also polished to ensure that it fits the inner race of the bearing correctly. We also make sure that it has the correct end play, so that it is not bound up or too loose.

ABEC 7 Hybrid Ceramic Bearings - These are ABEC 7 rated, maximum-performance hybrid ceramic replacement bearings. They feature no-contact seals, for less drag and are the highest precision, most free spinning bearing available for r/c motors. These bearings are lighter and capable of achieving higher RPM's compared to standard chrome steel bearings. The high-tolerance ceramic balls are super-hard and roll with extremely high accuracy and low resistance. More info here We also make sure the bearings seats are sized correctly before installing the bearings. This ensures that the bearings are not squeezed or distorted when installed, which could cause extra drag or nonconcentrical bearing movement. If required, the rotor shaft is also polished to ensure that it fits the inner race of the bearings correctly.

Rotor Options - Choose the 12.5mm high-torque Pro Select rotor at no extra cost, or one of the other three "optional" or "upgraded" rotors listed below. There is an upcharge for the optional and upgraded rotors. If you choose the "optional" 12.3mm or 12.4mm Pro Select rotor, you will also receive the standard 12.5mm high-torque Pro Select rotor. All Team Works rotors are checked for correct bearing fit. If required, the rotor shaft is polished to ensure that it fits the inner race of the bearing correctly. All Team Works rotors are guaranteed to meet our strict specifications.

Read more about the standard 12.5mm ROAR Spec PRO SELECT High-Torque rotor here
Read more about the standard upgrade 12.5mm ROAR Spec ULTRA SELECT High-Torque rotor here
Read more about the optional 12.4mm ROAR Spec PRO SELECT High-Torque rotor here
Read more about the optional 12.3mm ROAR Spec PRO SELECT High-Torque rotor here

Dyno Test - We evaluate your motor to make sure it is performing properly. We test your motor on our Fantom dyno, through an ESC. The ESC is set at the default settings (no added programming). This test evaluates RPM, Power and Torque. A printout is supplied with your motor.

Rotor Strength Test - We evaluate your rotor to make sure it meets proper specs. If we find that the rotor does not meet our strict standards, we will replace it. The rotor's magnetic field strength is tested on our Fantom Facts Machine v3 rotor tester and the results are provided.

Coil Resistance Test - We evaluate the ohms resistance of your stator to make sure it meets proper specs and to detect shorts. If we find that the stator does not meet our strict standards, we will replace it. We test each coil individually, with the Instek GOM-801H and the results are provided.

Set Motor Timing - This option allows you to either choose to have us set your timing to our recommended setting based on the race application that you select, or we can set it to your own custom setting. To set your timing, we use the highly accurate Motolyser brushless motor tester. IMPORTANT: If you choose to have us set your timing to our recommended setting, we set the timing based on blinky mode ESC operation.

Motor Evaluation - All Team Works motors are evaluated using the highly accurate Motolyser brushless motor tester. This includes checking the rotor strength and assymmetry, as well as the sensor board deviation and timing accuracy. We do not include Motolyser test results, but all Team motors are guaranteed to meet our strict Motolyser tolerances.

THIS MOTOR IS ALSO AVAILABLE AS A TEAM and TEAM WORKS PLUS (links below).

TEAM - Professionally built to our strict standards, which includes the rotor properly shimmed, complete evaluation of the coils, rotor strength and assymmetry and sensor board deviation. Rotor and timing options are also available with this version.

TEAM WORKS PLUS - This is our premium motor, built with all available options, including the aluminum upgrade parts. Team Works Plus motors include all of the Team motor options, plus we add re-shimming the rotor with Teflon shims, the highest grade ABEC 7 hybrid ceramic bearings, pro aluminum timing clamp, pro aluminum stator screws, pro aluminum timing clamp screws and all test results printed and included. This is as good as it gets!!
