Features

Waterproof for all weather operation *

LiPo and NiMH compatible

Program functions changed with the use of jumper pins

Up to an 8T motor limit

Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles

Crawler running mode

Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation

Overview

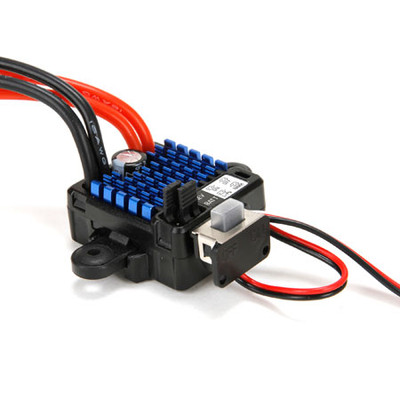

This waterproof, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.

* While waterproof, this component has not been designed to immerse in water for long periods of time and should NOT be treated like a submarine. Please be sure to read through the general precautions listed in the user’s manual.

Specifications

Forward: Yes

Reverse: Yes

Brake: Yes

Time Delay Brake: Yes

Continuous Maximum Current: FWD: 60A REV: 30A

Input Voltage: 2-3S Lipo, 5-9 cells NiMH/NiCd

Input Connector Types: EC3

Output Connector Types: 3.5mm Tamiya style bullet

Motor Limit: 2S Lipo/6cell NiMh >=8T 540/550 closed endbell motors, 3S Lipo/9cell NiMh >=13T 540/550 closed endbell motors

Momentary Peak Current: FWD: 360A REV: 180A

Length: 1.48 in (37.5mm)

Width: 1.46 in (37mm) without tabs, 2.23 in (56.6mm) with tabs

Height: 0.71 in (18mm)

Weight: 1.41 oz (40g)

BEC Voltage: 5V

PWM Frequency: 1KHz

Overload Protection: Yes

Full On Resistance: .0008 ohms

Wire Gauge: 16AWG

Auto Cutoff: Yes
