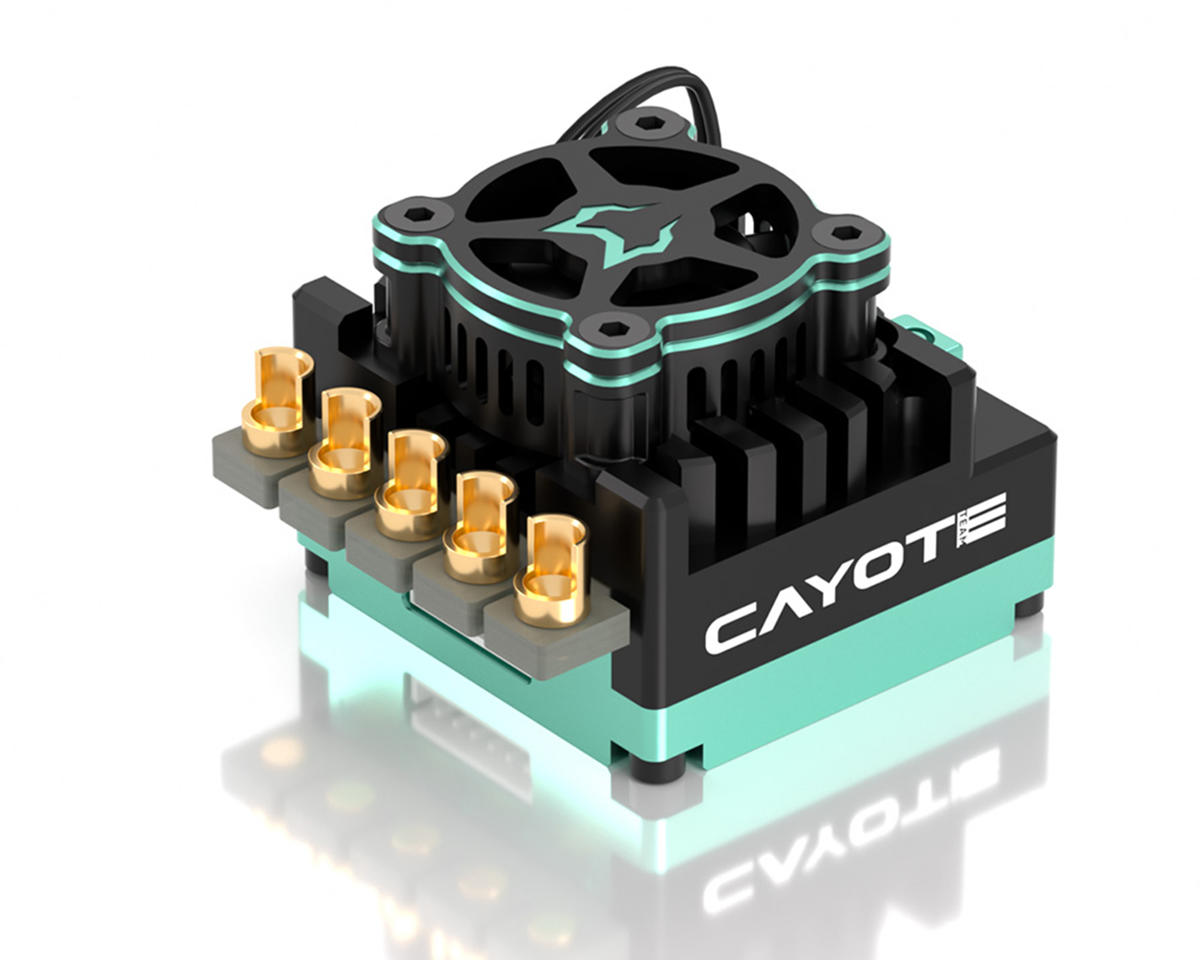

Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC

No reviews yet Write a Review
$89.99
SKU:
CYEA11002
UPC:
889551122092
Availability:
This item ships in 24h when in stock
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC

$89.99

Lightweight ESC with Advanced Cooling Power

The Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC is engineered for serious RC racers seeking peak performance in a lightweight, compact package. Weighing just thirty-six grams, this ESC combines smart design with powerful output, making it ideal for competitive 1/10 drifting or professional stock class racing. Tailored presets for various race types simplify setup, while advanced cooling technology ensures efficiency and durability. Whether you're navigating off-road challenges or racing on smooth tarmac, the Crest RS120 delivers consistent, high-performance control.

About the Crest RS120 Brushless ESC



Optimized Performance Across Race Modes

The Crest RS120 features three distinct race presets: Stock Racing Blinky Mode for compliance with no-advance timing rules, a 1/10 Off-Road Mode for truck and bumpy terrain applications, and a 1/10 On-Road Mode for high-speed asphalt action. Each mode is pre-calibrated to deliver tailored power curves, enhancing drivability and control. These profiles remove the guesswork and let racers focus on performance.

Advanced Cooling & Technology

Utilizing innovative ultra-thin, windowed cooling N-MOS technology, the Crest RS120 integrates its chip core directly with the metal housing. This engineering feat reduces thermal resistance by 35%, resulting in improved heat dissipation and maintaining 98% energy efficiency. The compact design eliminates bulky heat sinks, allowing for a slimmer ESC that runs cooler and lasts longer, even under demanding race conditions.

Precision Tuning & Data Feedback

With built-in features like adjustable RPM limiting, offline data recording, and independent drag brake and brake frequency control, the Crest RS120 is all about customization. Users can fine-tune their setups in 0.5K increments and analyze performance data via the Cayote BTune ESC Bluetooth Module (CYECBM01 - sold separately) or Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) with the Cayote APP. This level of precision ensures better handling and strategic insight for competitive drivers.

Features:

  • Stock Racing Blinky Mode
  • 1/10 Off-Road and On-Road Race Presets
  • 120A continuous output current
  • Ultra-lightweight at 36 grams
  • Cooling N-MOS technology with 35% reduced thermal resistance
  • 98% energy efficiency
  • Adjustable RPM limit
  • Offline data recording for performance analysis
  • Independent drag brake and brake frequency control
  • High-performance CNC alloy fan system

Includes:

  • (1) Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC
  • Instruction Manual

Specifications:

Suggested Application 1/10 Touring Car, Buggy, Drift, Stock Class Racing
Motor Type Brushless - Sensored/Sensorless
Input Voltage 2S LiPo (7.4V)
Continuous Current 120A
Peak Current 600A
Dimensions (LxWxH) 1.39x1.20x0.96in (35.3x30.5x24.5mm)
Weight 1.27oz (36g)
Motor Limits:
540/3650 >10.5T
BEC Voltage 6.0/7.4V
BEC Continuous Current 5A
BEC Peak Current 8A
Motor Connector Solder
Battery Connector Solder
Motor Wire -
Battery Wire -
Throttle Wire -
Programmable Yes, with Cayote Xlink Program Box*

*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
