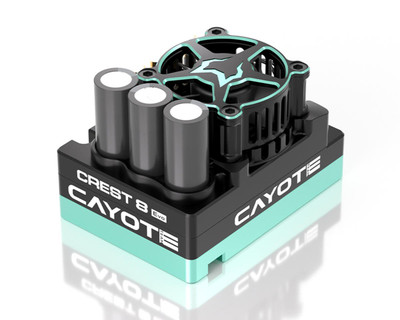

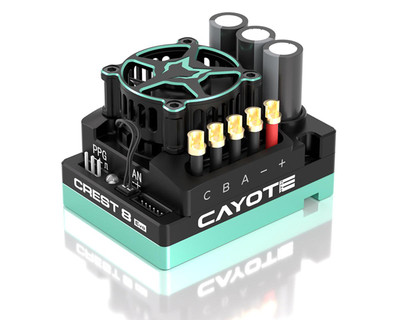

The Cayote Crest 8 1/8 200A Sensored Brushless ESC is engineered for high-performance RC applications, delivering precise power control and reliability. With advanced cooling technology and customizable settings, this ESC adapts to various racing conditions. Additionally, this ESC includes an optional glitch buster to help smooth out voltage fluctuations and interference. Whether you're pushing the limits on the track or tackling challenging terrain, the Crest 8 ESC provides the control and durability needed for intense competition.
Featuring a super large 48° boost and turbo timing, the Crest 8 ESC maximizes power output while optimizing motor efficiency. This advanced timing system enhances acceleration and top speed, making it ideal for competitive racing. The fine-tuned performance ensures smoother throttle response and increased stability during high-speed runs.
With offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, helping to optimize power output and battery usage. By reviewing recorded data using the Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)*, users can fine-tune their setup for consistent and reliable results.
Equipped with over thirty-three adjustable parameters, the Crest 8 ESC offers extensive tuning options to match various racing styles. Multiple protection functions such as low voltage and motor overheat protection safeguard your electronics from damage. The built-in professional reversing shutdown system ensures precise control, making it a reliable choice for demanding racing conditions.
| Suggested Application | 1/8 Buggies, Truggies & Trucks |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | 200A |
| Peak Current | 1080A |
| Dimensions (LxWxH) | 2.24x1.64x1.57in (56.8x41.6x40mm) |
| Weight | 4.3oz (122g) |
| Motor Limits | 4268/4274 3000kV Maximum with 4S Lipo |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 8A |
| BEC Peak Current | 12A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | 10AWG |
| Battery Wire | 13AWG |
| Throttle Wire | - |
| Programmable | Yes, with Cayote Xlink Program Box* |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
