FEATURES:
Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting
points for optional 2-speed and servo winch, adjustable chassis mounted servo system

Drive:
Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for increased steering angle, full ball bearing drivetrain

Transmission: AX10 three gear layout, metal motor plate, adjustable ratio for high speed or competition level crawling speed Slipper Clutch: Dual pad design for added surface area

Motor: 35 turn, brush equipped, water resistant, integrated cooling fan

Radio: Tactic TTX300 3-channel SLT radio with TR325 Receiver, programmable 3rd channel for operating two speed transmission winches or lights

Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearings

ESC:
Axial AE-5 waterproof, switchable between LiPo or NiMH operation with a jumper, male star plug lead
Spur Gear: 56T 32-pitch
Pinion Gear 15T 32-pitch
Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
Front and Rear Axles: Hardened steel
AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one-piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist

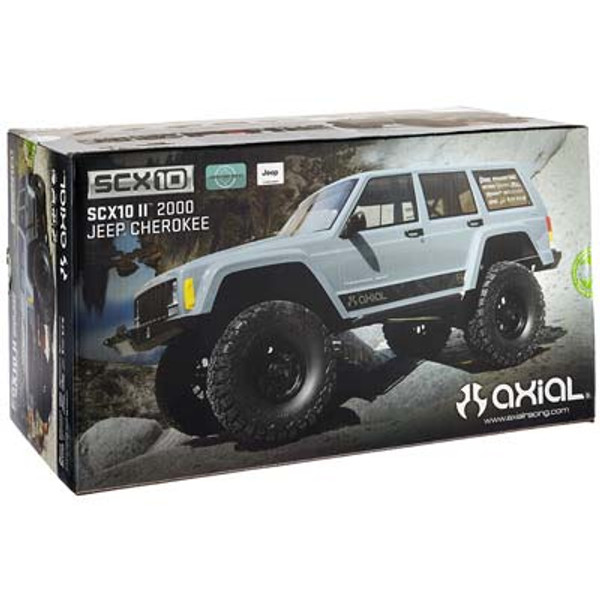

Body: Painted 2000 Jeep Cherokee
Wheels: 1.9" Method, composite plastic construction, black in color
Tires: BF Goodrich A/T KO2, S30 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide
Shocks: Coil over, oil filled, steel springs, white in color
Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications, all steel links
Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
Bumpers: Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)
Warranty: Axial warrants this kit to be free from defects in materials and workmanship when new. This warranty does not cover damages due to normal wear and tear, user's failure to perform routine maintenance, user error of assembly or installation, user modifications, addition of aftermarket parts or option parts.

INCLUDES:
RTR SCX10 II Jeep 4WD All Terrain, Shocks, Wheels, Tires, Painted
Body, Rock Sliders, Radio, ESC, Motor, Decals. Waterproof Receiver
Box and Instruction Manual

REQUIRES:
Battery: 6-cell NiMH or 2-3S LiPo
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS:
Vehicle-
Length: 22.1" (561.9mm)
Width: 8.9" (228mm)
Height: 10.5" (268mm)
Wheelbase: 12.3" (312.4mm) adjustable with optional link kits sold separately
Ground Clearance: 3.0" (77mm)
Weight: 4.5lbs (2.04kg) approximately, with electronics
Final Drive Ratio (FDR): 40.44, stock (33.69-54.15 with different spur/pinion gear combinations, extra spur and pinion gears must be purchased separately)
Body-
Length: 20.1" (511mm)
Width: 8.3" (211mm) behind front wheels, narrowest point 9.0" (230mm) at rear wheels, widest point
Height: 5.4" (137mm)
