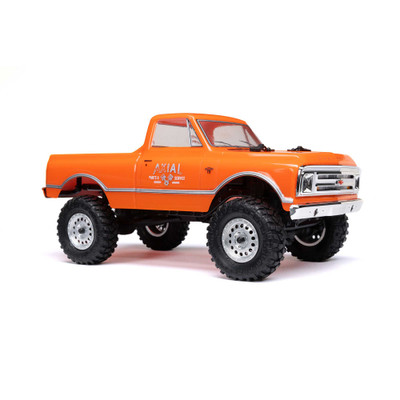

1967 CHEVROLET C10 BODY
The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove two clips to tilt back the body.
WORM GEARS
The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.
STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.
FRONT AND REAR SOLID AXLE HOUSINGS
The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.
4-LINK REAR SUSPENSION
The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.
OIL-FILLED SHOCKS
Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.
SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
DYNAMITE BRUSHED MOTOR
The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.
SPEKTRUM SLT2 2.4GHz RADIO SYSTEM
The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.
FULL BALL BEARINGS
Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.
METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES
The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler™ T/A® KX tires have won more rock-crawling championships than all other tires combined. The Axial version captures the same aggressive look in 1/24 scale.
LED LIGHTS INCLUDED
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
©2024 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, SCX24, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. General Motors Trademarks are used under license to Horizon Hobby, LLC. BFGoodrich and the BFGoodrich logo are trademarks of Michelin Lifestyle Limited, used under license. Method Race Wheels and associated logos are property of Method Race Wheels, used under license. All other trademarks, service marks and logos are property of their respective owners.
NOTE: Prototype shown. Some imagery may differ from the actual product.
Specifications:
Approximate Assembly Time - None
Ball Bearings - Full set
Battery - Included
Body - Axial 1967 Chevrolet C10 Pickup
Brakes - Integrated with ESC
Charger - Included
Chassis - Stamped Steel Chassis Rails
Completion Level - Ready-To-Run
Connector Type - PH 2.0 (High-Current Ultra Micro)
Differential - Worm gear 16T/4T
Drive Type - Forward/Reverse
Drivetrain - 4WD
Front Track - 3.9 in (99.5mm)
Ground Clearance - 1.06" (27mm)
Make - Chevy
Motor Size - 080 Brushed Electric Motor
Motor Type - Brushed
Outer Diameter - 1.88" (48 mm)
Pinion - 10T
Power Type - Electric
Product Height - 3.6" (91 mm)
Product Length - 8.6" (218 mm)
Product Weight - 8.0 oz (0.22kg)
Product Width - 3.9" (99 mm)
Radio - Included
Rear Track - 3.9 in (99.5mm)
Receiver - Included
Scale - 1/24
Servos - Included
Shock Type - Coil-over, Oil-filled, 0.9-1.3 in (24-33.4mm)
Speed Control - Included
Spur Gear - 55T
Steering Type - 2WS
Suspension - Solid Axle, Front and Rear
Tire Tread - Nitto Trail Grappler
Vehicle Type - Rock Crawler
Water-Resistant - Yes
Wheel Width - .48" (12.4mm)
Wheelbase - 5.2" (132 mm)
