Arrma Outcast 8S BLX Brushless RTR 1/5 4WD Stunt Truck (Red) w/DX3 Radio, Smart ESC & AVC

No reviews yet Write a Review
$1,069.99
$969.99
(You save $100.00
SKU:
ARA5810
UPC:
5052127031172
Availability:
Usually ships within 24 hours
Weight:
36.00 LBS
Shipping:
$40.00 (Fixed Shipping Cost)

Arrma Outcast 8S BLX Brushless RTR 1/5 4WD Stunt Truck (Red) w/DX3 Radio, Smart ESC & AVC

$1,069.99
$969.99
(You save $100.00

Beach RC says....

Features

General Features
    • ARRMA®-tough design
    • ARRMA® modular platform with many "custom-build" options
    • Adjustable battery boxes with hook and loop straps
    • Chassis brace options including tower-to-tower
    • Reverse bell crank steering system
    • Heavy-duty double spring servo saver
    • Hex hardware throughout
    • Versatile chassis accepts motors up to 56110 size and 1/6 or 1/5 size servos
    • 2-year limited warranty (see website for details)

Performance
  • Spektrum DX3 2.4GHz Radio with SRS6110AT AVC® Receiver
  • Spektrum Firma 160A Smart ESC
  • Spektrum Firma 1250Kv Brushless Motor
  • Spektrum S905 Metal-Geared Digital Servo
  • 4-Wheel shaft drive
  • 8S Power (two 4S batteries, not included)
  • Anti-roll bars (optional, not included)
  • Adjustable camber
  • Adjustable front toe
  • Rear adjustable camber link positions
  • Adjustable ride height
  • Adjustable droop
  • 20 million cSt oil in center differential
  • CVD driveshafts
  • All-terrain dBoots® BACKFLIP tires
  • Massive 20mm bore oil-filled adjustable shocks
  • Wheelie bar with rubber tires for maximum stunting
  • High downforce wing fitted with special wear screws to protect the wing when upside down
Durability
    • Extra-rigid, laser-etched anodized aluminum chassis
    • Multi-structured center brace system
    • Rear lower chassis brace
    • Strong composite chassis side pods
    • Under-chassis skids
    • Metal inserts molded into the front steering knuckles
    • Metal wishbone covers to prevent the pivot ball from pulling out of the arms
    • Extra-thick molded composite front and rear shock towers
    • Heavy-duty drivetrain
    • Durable steel driveshafts
    • All-metal diff outdrives and gearbox internals
    • Spiral-cut crown/pinion gears
    • Metal differential gears
    • Metal spur/idler gear
    • Aluminum sliding motor mount
    • Heavy-duty dual spring servo saver
    • Waterproof* receiver box
    • Electronic ESC power switch
    • Captured hinge pins
    • Aluminum hanger inserts
    • Center protection tower that interfaces with the roll cage for increased body durability
    • Body clip protection pads on top of body
    • Single piece wing mount
    • Heavy-duty front bumper
    • Metal 24mm hex inserts in wheels

Easy Maintenance
  • Easy access to front and rear differentials (5 screws)
  • Easy-to-remove Power Module (5 screws)
  • Sliding motor mount for easy motor removal (3 screws)
  • Easy-to-remove chassis braces (1 clip with retainer)
  • Easy-to-remove front, rear and center modules
  • Easy-access waterproof* electronics module

Overview

Driven by 8S brushless power and an ARRMA®-tough design, the OUTCAST 8S BLX 4WD delivers the torque, acceleration and speed you need for extreme action in 1/5 scale. This ready-to-run stunt truck comes equipped to defy gravity right out of the box. From the heavy-duty front bumper to the wheelie bar in back, it's engineered to do it all: long, tall wheelies; tight, fast donuts; standing and aerial backflips; high leaps into the air; and more — over all terrain, in all conditions.

Just add your choice of batteries and charger and go. The OUTCAST 1/5 8S BLX 4WD includes a Spektrum DX3 Smart transmitter and SRS6110AT AVC® (Active Vehicle Control®) receiver that take full advantage of the Spektrum Smart Firma brushless motor and ESC's innovative telemetry capabilities. Download the free Spektrum Dashboard App to your mobile device and follow motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio's AVC® system to carve corners and nail jumps without letting up on the throttle.

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale OUTCAST 8S BLX 4WD Stunt Truck features a metal-reinforced design that lets you blast up, over and through bruising obstacles. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. Even the included Spektrum S905 digital servo boasts the strength of metal gears.

The extra-rigid, laser-etched, anodized aluminum chassis plate has a multi-structured center brace system, rear lower chassis brace and strong composite chassis side pods for the durability to support extreme stunts. Extra-thick molded composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks to soak-up bumps and jolts.

ARRMA® keeps your maintenance time to the minimum with an efficient, driver-friendly design. A sliding, 3-bolt aluminum mount provides fast motor access. The vehicle's front, rear and center modules and waterproof electronics module are also engineered for quick and easy access, removal and maintenance.

The ultra-tough OUTCAST 1/5 8S truck body arrives factory trimmed, painted and decaled. A center protection tower on the chassis interfaces with the roll cage for increased body durability. Its tough stunt truck wheels come outfitted with metal 24mm hex inserts and multi-terrain dBoots® BACKFLIP tires that provide all the traction you'll need to flip, grip, wheelie and spin. A high downforce wing helps keep the vehicle grounded — and a wheelie bar is there for when only 90 degree wheelies will do!

Needed to Complete
  • (2) 4S LiPo Batteries with IC5/EC5 Connector
  • Compatible Charger
  • LiPo Charging Bag
  • (4) AA Batteries
What's in the Box?
  • (1) OUTCAST 1/5 8S BLX 4WD Stunt Truck RTR
  • (1) Spektrum Firma 160A Smart ESC
  • (1) Spektrum Firma 1250Kv Brushless Motor
  • (1) Spektrum S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
WHEELIE BAR
WHEELIE BAR

For when only 90 degree wheelies will do



SWB CHASSIS
SWB CHASSIS

Responsive stunt performance



SLIDING MOTOR MOUNT
SLIDING MOTOR MOUNT

For easy meshing and quick removal



FRONT BUMPER
FRONT BUMPER

Stylish looks and functional impact protection



ROLL-CAGE, STUNT RAGE
ROLL-CAGE, STUNT RAGE

The stiff roll-cage offers protection against high speed roof-time



BODY PROTECTION TOWER
BODY PROTECTION TOWER

Interfaces with roll-cage for enhanced body durability



ARRMA BRANDED ALUMINUM CHASSIS
ARRMA BRANDED ALUMINUM CHASSIS



STUNT TRUCK WHEELS & DBOOTS BACKFLIP TIRES
STUNT TRUCK WHEELS & DBOOTS BACKFLIP TIRES



HYPER-DETAILED DECALS
HYPER-DETAILED DECALS



BODY POST SHIELDS WITH INTEGRATED BODY PIN RETAINERS
BODY POST SHIELDS WITH INTEGRATED BODY PIN RETAINERS



ALL-METAL TRANSMISSION
ALL-METAL TRANSMISSION

Center diff filled with 20 million cSt oil



'SAFE-D5' PINION
'SAFE-D5' PINION

Safe and Secure SAFE-D5 design secures pinion to the motor in three ways:

  • 1. Set Screw
  • 2. D-Shaped hole
  • 3. E-clip





MASSIVE ALUMINUM OIL-FILLED SHOCKS
MASSIVE ALUMINUM OIL-FILLED SHOCKS

ARRMA shock size comparison: 6S shock (left), 8S shock (right)



OVERSIZED BATTERY TRAYS
OVERSIZED BATTERY TRAYS

Accommodates a wide range of battery sizes



ADJUSTABLE BATTERY TRAY
ADJUSTABLE BATTERY TRAY



  • Length: 140mm-170mm
  • Maximum Battery Dimensions: 6.69 x 2.16 x 2.08 in. (170 x 55 x 53mm)





GIANT 8S TOUGH METAL GEAR DIFFERENTIALS
GIANT 8S TOUGH METAL GEAR DIFFERENTIALS

ARRMA diff size comparison: 6S diff (left), 8S diff (right)



CENTER DIFF EXPOSED
CENTER DIFF EXPOSED

8S ARRMA tough



SPEKTRUM S905 METAL GEAR SERVO
SPEKTRUM S905 METAL GEAR SERVO



  • Full-size 1/5th scale servo
  • Strong, metal gears used throughout
  • Waterproof and dustproof case
  • 15 tooth output spline
  • Torque: 38kg-cm @6V
  • Speed: 0.20sec/60degree @6V
  • Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)





SPEKTRUM FIRMA 160A SMART ESC
SPEKTRUM FIRMA 160A SMART ESC



  • Waterproof and dustproof design
  • 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
  • Spektrum® SMART Technology
  • Fitted with reliable IC5 connectors (EC5 compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings





SPEKTRUM FIRMA 1250Kv BRUSHLESS MOTOR
SPEKTRUM FIRMA 1250Kv BRUSHLESS MOTOR



  • 1250Kv 4685 size 8S brushless motor
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 6.5mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

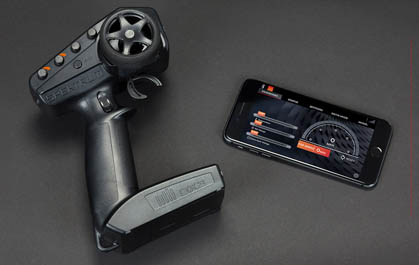

SPEKTRUM 2.4GHz DX3 SMART TX & SR6100 RX
SPEKTRUM 2.4GHz DX3 SMART TX & SR6100 RX



  • Ergonomic steering wheel for precise control
  • On-the-fly adjustable AVC® gain for personalized handling
  • Lightweight and ergonomic design for long bashing
  • 2 channel radio system
  • 2.4GHz technology built around DSMR technology
  • Full-range telemetry capabilities





DX3 CAN BE EQUIPPED WITH SPEKTRUM DASHBOARD
DX3 CAN BE EQUIPPED WITH SPEKTRUM DASHBOARD



  • Spektrum Bluetooth module*
  • DX3 Smart Phone Mount*
  • Smart Phone with the free Spektrum Dashboard App*

Download the free Spektrum Dashboard app for your smart phone at your preferred app store

*Optional items that need to be purchased separately
