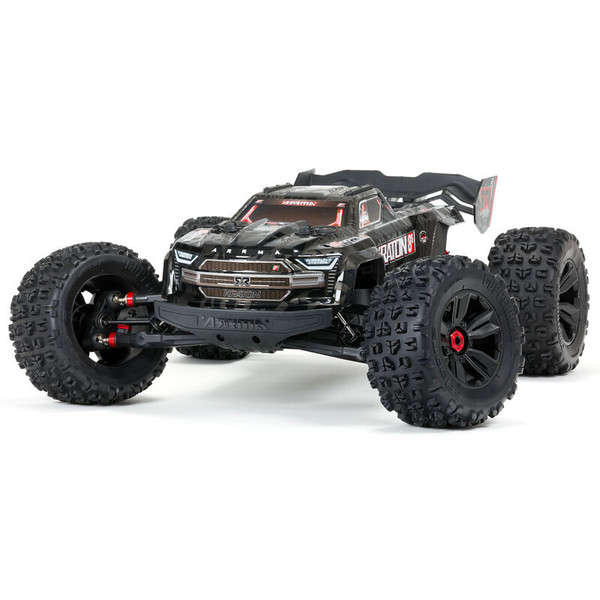

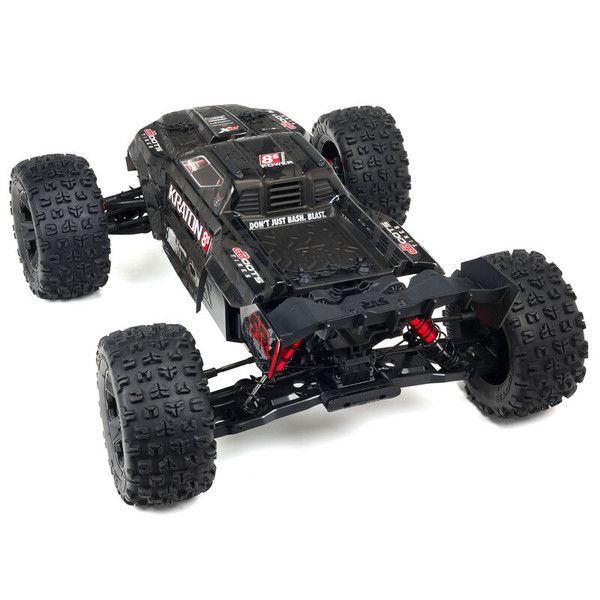

Fully assembled and ready for your powerful electronics, the ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck adds extra toughness everywhere it counts. Topped with an exclusive EXB matte and gloss finish body, it’s the King of KRATONS!
Key Features
  • Add your choice of electronics to be as fast and powerful as you like
  • Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • Exclusive EXB matte and gloss effect body

In The Box
  • (1) ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck
  • (1) Optional 39T Spur Gear
  • (1) Red-Anodized Aluminum 49 and 56 Series Motor Plates
  • (1) Mounts for 1/5 and 1/6 Servos
  • (1) Adapters for 15T and 17T Servo Splines
  • (1) Product Manual

Needed to Complete
  • Motor
  • Electronic Speed Control
  • Radio System
  • Steering Servo
  • Batteries
  • Charger


Introduction

The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck showcases ARRMA® bashing performance at its biggest and best — it's the King of all KRATONS, providing large scale bashers with the ultimate Speed Monster Truck experience. Add your choice of powerful 8S brushless power system and watch the KRATON 1/5 EXB blast over punishing off-road terrain with ease.

Features

  • Designed Fast, Designed Tough
  • Add your choice of electronics to be as fast and powerful as you like
  • Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • EXB Front bumper with impact absorbing design
  • Exclusive EXB matte and gloss effect body
  • Heavy-duty shocks with 6mm thick shock shafts and beefy shock rod ends
  • Heavy-duty 7mm thick steering turnbuckles and 8mm thick rear suspension upper link turnbuckles with massive rod ends
  • Heavy-duty COPPERHEAD 2 Big Block tires
  • Black-anodized aluminum rear lower chassis brace
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods
  • Front and rear sway bars
  • Red-anodized aluminum 49 and 56 series motor plates
  • Easy-access front and rear diff module design
  • 47T and optional 39T spur gear
  • Servo mounts for 1/5 and 1/6 servos
  • 15T and 17T servo saver adaptors
  • Heavy-duty servo saver springs

Overview

ARRMA® engineers have added extra toughness everywhere it counts to make the fully assembled chassis a perfect platform for high-speed bashing over brutal terrain. Numerous EXB-hardened parts and options give the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength right out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design. Topping it off is an exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck blasts over dirt, asphalt, and grass — all terrain and all conditions. Beefy dBoots® COPPERHEAD 2 big block tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling at high speeds.

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing.

ARRMA® also keeps your maintenance downtime to the minimum. The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck more than just a massive and powerful bashing machine. It's the best of the best — the King of the KRATONS!





EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® KRATON EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength.



Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale KRATON EXB to withstand extreme off-road bashing.



Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.



High-Traction dBoots<sup>®</sup> Tires
High-Traction dBoots® Tires

Beefy dBoots® COPPERHEAD 2 big block tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.



Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.



Electronics Module
Electronics Module

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.



Multi-Structured Center Brace System
Multi-Structured Center Brace System

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.



Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXtreme Bash toughened suspension system smooths the ride.



Product Specifications

Specs

Approximate Assembly Time 1 - 3 hours
Ball Bearings Full set
Battery Sold Separately
Body Painted, trimmed and decaled
Brakes Integral with ESC (ESC not included)
Charger Sold Separately
Chassis 0.196" (5mm) Plate, 7075-T6 Aluminum
Completion Level Kit
Differential 3 differentials, gear type design
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Final Drive Ratio 9.1 - 28.4
Front Track 23.7" (602mm)
Power Type Electric
Gear Pitch 1.0 MOD
Internal Gear Ratio 9.06
Product Height 11.1" (282 mm)
Product Length 30.35" (771 mm)
Product Weight 23.32 lb (10.6kg)
Product Width 23.7" (602 mm)
Radio Sold Separately
Rear Track 23.7" (602mm)
Receiver Included
Scale 1/5
Servos Sold Separately
Shock Type Oil-filled, coil-over springs
Speed Control Sold Separately
Spur Gear 47T and 39T included
Suspension Independent
Vehicle Type Monster Truck
Water-Resistant Yes
Wheelbase 19.33" (491 mm)
