LONGER CHASSIS

For this new version of the OUTCAST™ 4x4 4S BLX Stunt Truck, ARRMA® engineers lengthened the vehicle to 20.28 inches - 1.08 inches longer than previous model — for increased stability and control.



WIDER TRACK

To handle more aggressive bashing, the front and rear track width has been increased with new, wider arms to 17.72 inches - 1.72 inches more than the previous OUTCAST™ 4X4 4S BLX Stunt Truck.



DESIGNED TOUGH

Features that contribute to the 4X4 4S BLX platform's unstoppable performance include a stronger composite chassis and retained hinge pin plates; protective skid plates in front and rear; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can reach the chassis tub. Front and rear bumpers offer defense against impacts.

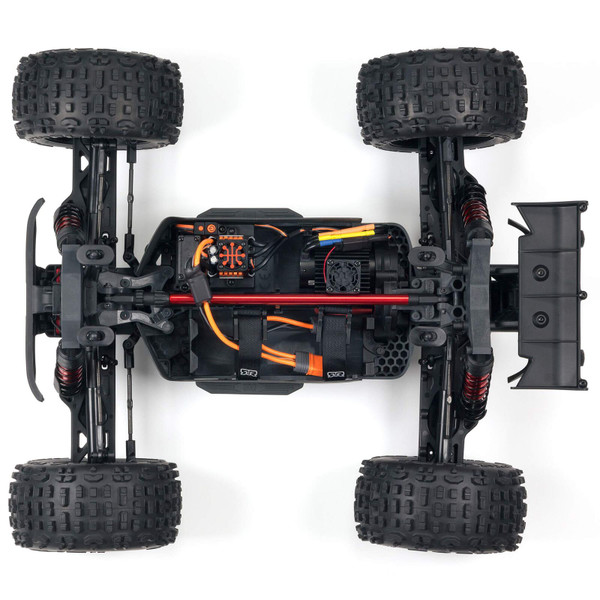

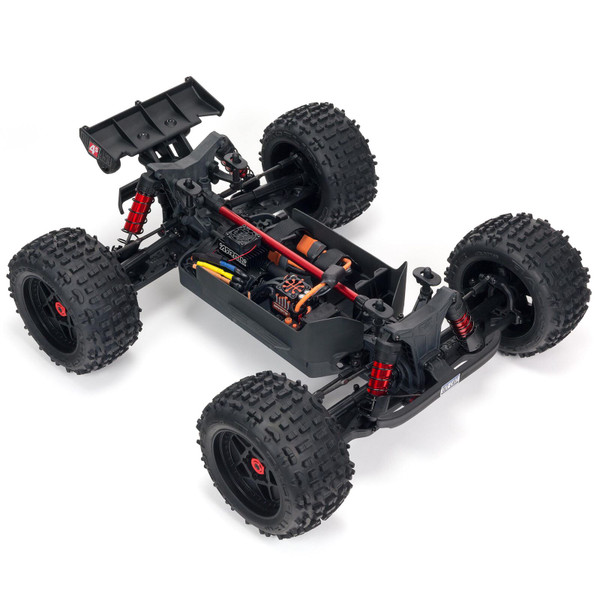

MODULAR DESIGN

The OUTCAST™ 4X4 4S BLX Stunt Truck RTR incorporates the signature ARRMA® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics and differential components make routine maintenance fast and simple.

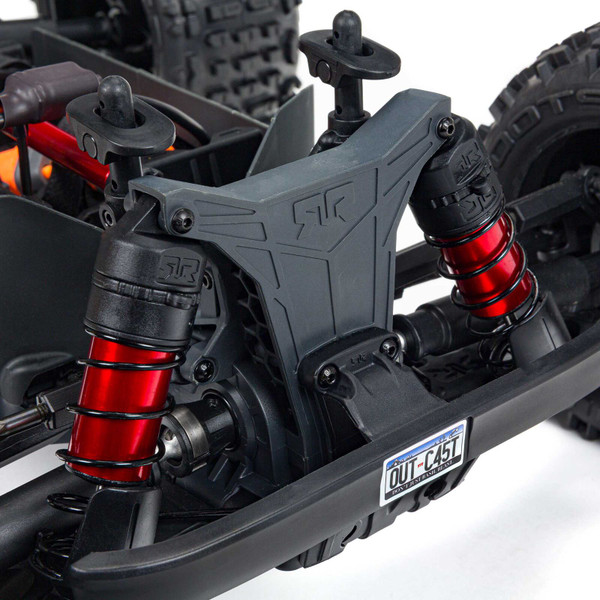

BIG BORE OIL-FILLED SHOCKS

Longer, aluminum-bodied, oil-filled big bore shocks are included and mounted on higher shock towers. These plus the wider suspension arms give the vehicle longer, more plush suspension travel.



WHEELS & TIRES

The durable, low-profile dBoots® Back-Flip tires with medium-compound foam inserts offer long-lasting performance and feature an aggressive tread pattern for excellent traction on a wide range of surfaces. The tires are mounted on tough, 3.8" MT wheels with CNC machined, red anodized 17mm hubs.



STEEL INPUT & MAIN DIFF GEARS

The input and main differential gears are now manufactured from steel. Combined with the steel internal differential gears these provide an extremely strong transmission for the KRATON® 4X4 4S BLX Speed Monster Truck.



CVD SLIDER DRIVESHAFTS

The driveshafts on the KRATON® 4X4 4S BLX Speed Monster Truck are now a CVD design. These feature strong, hard wearing steel couplings and axles. The sliders are manufactured from a tough, impact absorbing composite material.

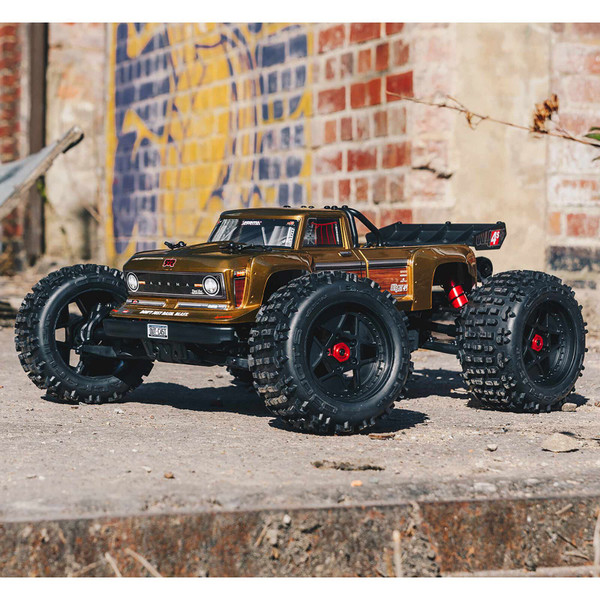

FINISHED TRUCK BODY

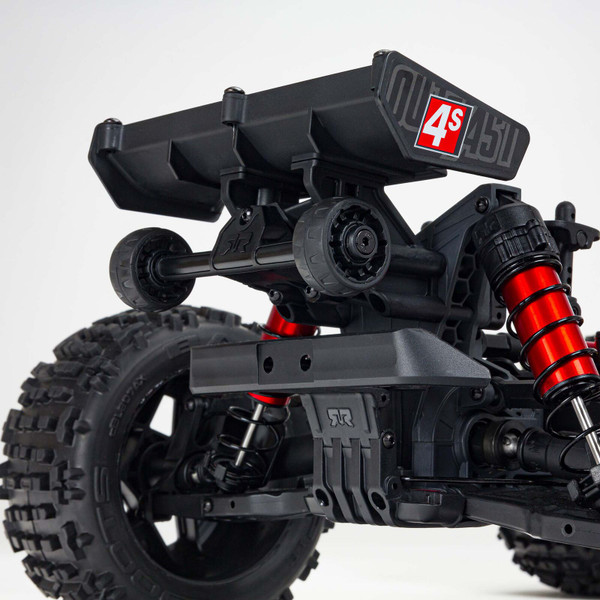

The sleek truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of two exciting colors. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.



Spektrum™ SLT3™ 2.4GHz 3-Channel Transmitter

• Fast response SLT™ protocol
• Foam wheel
• Improved grip and trigger feel
• Improved wheel and trigger force
• 2-Way thumb switch 3rd channel
• 50% and 75% Throttle mode (for beginners)
• Tactic® SLT™ receiver compatible



Spektrum™ SR315 3-Channel Dual Protocol Receiver

• Fast response rate and outstanding range
• SLT™ and DSMR® protocol compatible
• No-tool binding and protocol switching
• Compact and lightweight hard case
• Spektrum Smart telemetry compatible (in DSMR® mode and using Spektrum™ Dashboard™ app)



Spektrum™ S652 Digital Servo

• 32% stronger and 5% faster than previous version's ADS-15M servo for improved steering feel
• Torque: 16.70 kg-cm (232 oz-in) @ 6.0V
• Metal-Geared
• Waterproof*



Spektrum™ Firma™ 120A Smart ESC

• Forward/reverse/brake
• Input voltage 11.1V-14.8V
• Input connector IC5® with 12AWG, 220mm wire
• Output connector 4mm female bullet with 12AWG, 150mm wire
• Fast, powerful 32-bit ARM M4 processor
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• High-power BEC
• Smart telemetry compatible
• Waterproof*



Spektrum™ Firma™ 3668 2400Kv Brushless Motor

• 4 Pole / 4S
• ARRMA® heatsink and cooling fan
• Safe D pinion
