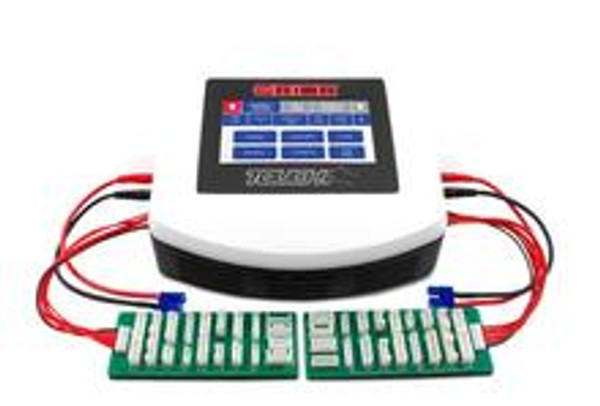

The Team Orion Advantage Touch charger was another revolution in the R/C world. Thanks to the color touch screen display, easy to use state-of-the-art software and a unique case design we created a new generation of chargers. The new AC/DC Touch Duo charger with its 200W integrated power supply offers the possibility to charge simultaneously two batteries with a charge current of up to 10A. You can simultaneously charge, discharge, store, cycle or balance any combination of LiPo/LiFe/LiIon/NiMH/NiCd/Pb batteries with great ease. Retractable feets allow for the user to incline the charger for ideal screen visibility. The interface is equipped with a top navigation bar that allows you to easily switch between the two channels and a new split view allows you to display simultaneously the data from both channels. As it’s the case with the other Advantage Touch chargers, the duo also features advanced setup possibilites, balancing, discharge and storage functions and a graphic engine to display charge and discharge curves. The charger is also equipped with a USB connector for firmware upgrades and two temperature probe connectors.

• Touch Screen Dual Channel Multi-Chemistry Charger
• Large size 4” Color Touch Screen
• Integrated 200W AC Power Supply
• 2x 6 memory slots for charge settings
• 200W (100W/channel) charge power, 2x10A max
• Charges 1-6S LiPo/LiFe/LiIon, 1-16 cell NiMH/NiCd and 1-20 cell Pb batteries
• Multi language easy to use interface
• New Split View Data Display
• Wide array of adjustable parameters
• Charge, discharge, cycle, storage and balance functions.
• Input/output reverse polarity and short circuit protection
• Two 4-in-1 Balancing Boards included

Chargers

Adjustable Charge Cut-Off:

Charge Leads:

• EC3

Input Voltage:

• 100-240VAC 50/60Hz
• 11-18V

Mains Plug Type:

• USA

Updatable Firmware:

User Interface:

• Spectra Color Touch Screen (480x272)

Charge Current: 0.1-10A

Charge Power: 100W

Discharge Current: 0.1-5A

Discharge Power: 20W Charging Capability:

• LiPo/LiFe/LiIon 1-6 cells
• NiMH/NiCd 1-15 cells
• Pb 2-20V

Delta Peak:

Charge Modes:

• Balancing
• Charge
• Cycle
• Discharge
• Storage

Double Output Charger:

Integrated Balancer (JST-XH):

Output: 2x 100W

Adjustable Beep Tones:

Adjustable Cycle Pause Time: 0-99min

Adjustable Discharge Cut-off:

Adjustable Max Charge Temperature: 0-99°C

Adjustable Peak Voltage: 1.5-4.3V

Adjustable Trickle Current: 0-500mA

Charge and Discharge Data Storage:

External Balancing Board:

Max Charged Capacity Safety:

Memory Profiles: 12

Multi-Protection System:

Optional Temp Probe:

Dimensions and Weight

Length: 202mm

Width: 190mm

Height: 74mm

Weight: 1340g
